Spring Manufacturing Tolerances: Standards You Should Know

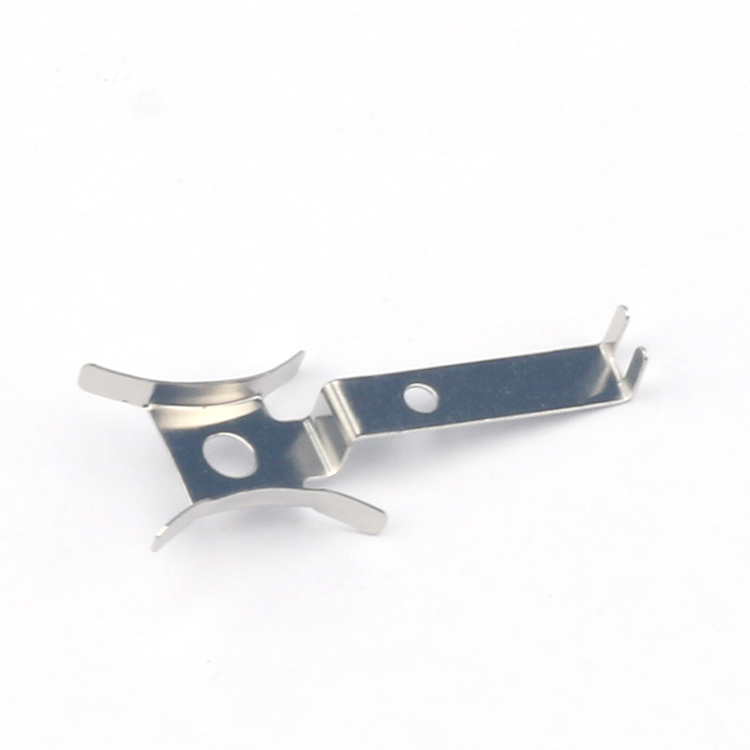

Introduction to Spring Manufacturing Tolerances
Springs are critical components in countless mechanical assemblies, from automotive suspensions to medical devices. Their performance and reliability depend heavily on dimensional accuracy and consistency. Manufacturing tolerances define the permissible variation in key parameters such as wire diameter, coil diameter, free length, spring rate, and load capacity. Understanding these tolerances is essential for engineers, procurement professionals, and quality managers to ensure springs function correctly and integrate seamlessly into larger systems.
This comprehensive guide covers the fundamental standards for spring tolerances, including international norms like DIN, ISO, and ASTM, as well as practical tips for specifying and verifying tolerances in production.
Why Tolerances Matter in Spring Manufacturing
Springs store and release energy through elastic deformation. Even slight deviations from design specifications can lead to performance issues such as premature fatigue, inconsistent force output, or assembly interference. Tight tolerances are crucial for applications requiring high precision, such as aerospace actuators or watch mechanisms. Conversely, overly strict tolerances increase manufacturing cost without functional benefit. Balancing cost and performance requires a clear understanding of tolerance grades and their real-world impact.
Key Dimensional Parameters and Their Tolerances
Wire Diameter (d)
The wire diameter directly affects spring stiffness and strength. Tolerances for wire diameter are typically defined by the wire manufacturer according to standards like ASTM A228 (music wire) or ASTM A227 (hard-drawn wire). For most helical springs, wire diameter tolerance ranges from ±0.001 to ±0.005 inches (0.025 to 0.13 mm) depending on wire size. Precision springs may require tighter tolerances, sometimes as low as ±0.0005 inches (0.013 mm).
Coil Outer Diameter (OD) and Inner Diameter (ID)
Coil diameters determine the spring's fit within its housing. Tolerance for OD and ID is usually specified as a plus/minus value, often in the range of ±0.010 to ±0.030 inches (0.25 to 0.76 mm) for common springs. Closer tolerances may be necessary for springs that operate over a mandrel or inside a bore.
Free Length (Lf)
Free length is the unloaded length of the spring. Tolerance for free length is commonly ±0.015 to ±0.060 inches (0.38 to 1.5 mm) for compression springs, depending on the number of coils and spring index. Precision springs may hold ±0.005 inches (0.13 mm).
Spring Rate (k)
Spring rate, or stiffness, is the load per unit deflection. Tolerance on spring rate is typically expressed as a percentage (e.g., ±5% to ±10%). For high-precision applications, ±2% may be achievable with careful design and manufacturing control.
Load at a Given Height
For compression springs, the load at a specified compressed height is a critical functional parameter. Tolerance is often ±10% of the specified load, though tighter tolerances (±5% or ±3%) can be achieved with additional processing like load testing and sorting.
International Tolerance Standards for Springs
Several standards organizations provide guidelines for spring manufacturing tolerances. The most widely referenced include:
| Standard | Scope | Typical Tolerance Grades |
|---|---|---|
| DIN EN 10270 | Steel wire for springs | Grade A, B, C for wire diameter; specific spring tolerances in DIN 2095 and DIN 2096 |
| ISO 7913 | Helical compression springs – tolerances | Grades 1, 2, 3 (1 being tightest) |
| ASTM A125 | Steel springs (various types) | Specifies tolerances for free length, diameter, and load |
| JIS B 2704 | Compression and extension springs | 1st grade, 2nd grade, 3rd grade (1st is coarsest) |
These standards define not only dimension tolerances but also acceptable surface imperfections, heat treatment variations, and testing methods. When specifying a spring, designers should reference the appropriate standard and tolerance grade to communicate requirements clearly to manufacturers.
Practical Tips for Specifying Spring Tolerances
Use standard tolerance grades when possible: Selecting Grade 2 (ISO 7913) or equivalent reduces cost and lead time compared to custom tight tolerances.
Consider stack-up tolerances: In assemblies with multiple springs, cumulative variation can affect overall performance. Tighten tolerances on critical dimensions only.
Specify functional parameters over dimensional ones: For example, specify load at height rather than exact free length, as load is more directly related to performance.
Allow for manufacturing process variations: Coiling, heat treatment, and surface grinding all introduce variability. Account for these in your tolerance analysis.
Request a tolerance analysis from your supplier: Experienced spring manufacturers can help optimize tolerance specifications based on their process capabilities.
How to Measure and Verify Spring Tolerances
Verification of spring tolerances requires appropriate equipment and procedures:
Micrometers and calipers: For wire diameter and coil diameter measurements.
Height gages and comparators: For free length and load-at-height testing.
Spring testers (e.g., mechanical or digital force-deflection testers) to measure spring rate and load.
Optical or laser measurement for non-contact inspection of complex geometries.
Sampling plans (e.g., ANSI/ASQ Z1.4) should be used to ensure statistical confidence. For high-volume production, automated inspection systems can provide 100% dimensional and functional testing.
Common Tolerance Challenges and Solutions
Spring End Coils Not Flat (Compression Springs)
Poorly ground end coils can cause uneven bearing surfaces. Tolerances for end flatness are often specified as a maximum angle deviation (e.g., 1°) or a gap under the end coil. Solution: Specify closed and ground ends and request flatness measurement.
Squareness of Ends
Springs that are not square to the axis may buckle or misalign. Tolerance for squareness is usually a percentage of free length (e.g., 1% to 3% of Lf per degree). Consider using a spring end grinding operation to improve squareness.
Variation in Coil Pitch
Inconsistent pitch can cause non-linear spring rate. This is controlled by coiling machine precision and material uniformity. Tight pitch tolerances may require statistical process control (SPC) during manufacturing.
Conclusion
Spring manufacturing tolerances are a critical aspect of design and production that directly influence performance, reliability, and cost. By understanding the key parameters, referencing international standards like ISO 7913 or DIN 2095, and applying practical specification and verification techniques, engineers can ensure their springs meet functional requirements without overpaying for unnecessary precision. Always collaborate closely with your spring manufacturer to establish achievable tolerances that balance quality and economy.
