Reworking Heat Sink Assemblies: Removal and Reattach
Short answer: Successful heat sink rework is a controlled three-stage process — heat-assisted separation at 60-80 °C, full removal of old thermal interface material with a lint-free solvent wipe, then reattachment with fresh TIM and a documented clamp or cure cycle. Expect 15-40 minutes per assembly for a bonded joint and 5-10 minutes for a mechanical one. Thermal resistance after a clean rework typically lands within 5-15% of the original build, provided the heat sink base is not bent and the mounting holes are not stripped. Never reuse cured thermal adhesive, and never reattach a heat sink whose base flatness has drifted beyond 0.05 mm.
Rework is the part of thermal design nobody puts in the datasheet. Yet every engineer who has built a prototype, chased a field return, or swapped an LED module mid-project eventually faces the same task: get the heat sink off, and get it back on without turning a working part into scrap.
This guide covers the practical mechanics of heat sink removal and reattachment for the three joint types you will actually meet — thermal adhesive, thermal tape, and mechanical clamp with grease or pad. It is written for B2B buyers, process engineers, and repair technicians working with aluminum and copper heat sinks sourced from a factory that also does the machining.
Why heat sink rework fails more often than it should
Most rework failures trace back to one of four root causes:
1. Thermal damage during removal. Prying a bonded heat sink off cold cracks the die, lifts pads, or delaminates a PCB copper plane. Adhesive bonds are strong in shear and weak in peel — but the force you apply with a screwdriver is peel plus bending.
2. Residue left behind. Old adhesive or dried-out grease adds a parasitic layer of 0.05-0.3 mm. That alone can double interface resistance.
3. Contaminated or oxidized mating surfaces. Finger oils, silicone residue, and aluminum oxide all raise contact resistance.
4. Lost clamping force. Reused spring clips, stretched screws, or re-tapped holes reduce contact pressure below the design point.
If you control all four, rework is a routine operation. If you control none, you get a unit that passes a quick power-on test and fails at hour 200.
What are the joint types, and how does each one come apart?
| Joint type | Typical bond strength | Removal method | Reusability |
|---|---|---|---|
| Thermal adhesive (epoxy or silicone-based) | High, often permanent | Heat to 60-80 °C, then controlled twist or peel | Heat sink reusable after cleanup; substrate depends on damage |
| Thermal tape (pressure-sensitive adhesive) | Medium | Heat to 50-60 °C, slow peel at low angle | Heat sink reusable; tape must be replaced |
| Thermal grease or pad + mechanical clamp | Low | Release fasteners or clips | Fully reusable |
| Phase-change pad | Low-medium | Warm above 45-60 °C, then lift | Heat sink reusable; pad replaced |
| Solder or sintered joint | Very high | Not field-reworkable; reflow required | Specialist process only |
The practical rule: the higher the bond strength, the more heat you need and the slower you must go. Speed is what breaks parts.
Adhesive-bonded heat sinks
Structural thermal adhesives are designed to survive vibration and thermal cycling for years. That is exactly what makes them hard to remove. The workable approach is to bring the joint to 60-80 °C — hot enough to soften the polymer, cool enough to stay well below any solder reflow or component damage threshold. A hot plate under the board is gentler than a heat gun on top, because it heats the whole joint evenly instead of creating a hot spot on the heat sink.
Once warm, apply a slow twisting motion rather than a lifting pry. Twisting loads the bond in shear, which is where adhesives are predictable. If the joint resists, add heat and wait — do not add force.
Thermal tape and phase-change pads
These are the friendliest joints. Warm to 50-60 °C, then peel at a shallow angle with a plastic wedge. Metal tools scratch the base and create a stress riser that shows up later as a crack initiation site. Once the tape is off, both surfaces need a solvent wipe — pressure-sensitive adhesives leave a tacky film that will not conduct heat.
Mechanically clamped heat sinks
The simplest case, and the one where people get lazy. Release the fasteners in a diagonal pattern, not sequentially, so you do not bend the base. Note the clip or spring condition before you remove it. A spring that has taken a permanent set will not deliver the original contact pressure when reused.
How do you clean the interface without damaging the surfaces?
Cleaning is where rework quality is won or lost. The target is a surface that is visually uniform, dry, and free of any film.
| Step | Action | Solvent / tool | Notes |
|---|---|---|---|
| 1 | Scrape bulk residue | Plastic scraper, wooden stick | Never use a blade on the base |
| 2 | Wipe | Isopropyl alcohol 90%+ or dedicated TIM remover | Lint-free cloth or swab |
| 3 | Repeat wipe | Fresh cloth, fresh solvent | Two-pass minimum |
| 4 | Dry | Air dry 1-2 minutes | Confirm no visible sheen |
| 5 | Inspect | Rake light or low-angle light | Any streak = repeat step 2 |
| 6 | Check flatness | Straight edge or feeler gauge | Flag anything over 0.05 mm deviation |
Two details matter more than the solvent brand. First, use a fresh cloth for each pass — wiping with a contaminated cloth just redistributes silicone oil. Second, do not touch the cleaned surface with bare fingers. Skin oils are a real interfacial contaminant, and a fingerprint on a heat sink base is measurable in thermal resistance terms.
For copper heat sinks, be aware that copper surfaces oxidize faster than aluminum after cleaning. If you are not reattaching within an hour, store the part in a sealed bag.
How do you reattach a heat sink correctly?
Reattachment follows the same logic as the original build, with one extra constraint: you may be working with a heat sink that has already seen thermal cycling.
Choose the right interface material
- Thermal grease — best performance, requires clamping force, not suitable for gap filling over 0.1 mm.
- Thermal pad — forgiving of surface variation, easy to rework again, lower performance than grease.
- Phase-change material — good middle ground, performs like grease at operating temperature and handles like a pad during assembly.
- Thermal adhesive — only when mechanical fastening is impossible. Treat it as a one-way decision.
Control the bond line
Thinner is better, up to a point. A grease bond line of 0.025-0.075 mm is a reasonable target for a machined surface. More material does not mean more conduction — it means more bulk resistance. For adhesives, follow the manufacturer's specified bond line; squeezing the joint too thin can starve the bond and create voids.
Restore clamping force

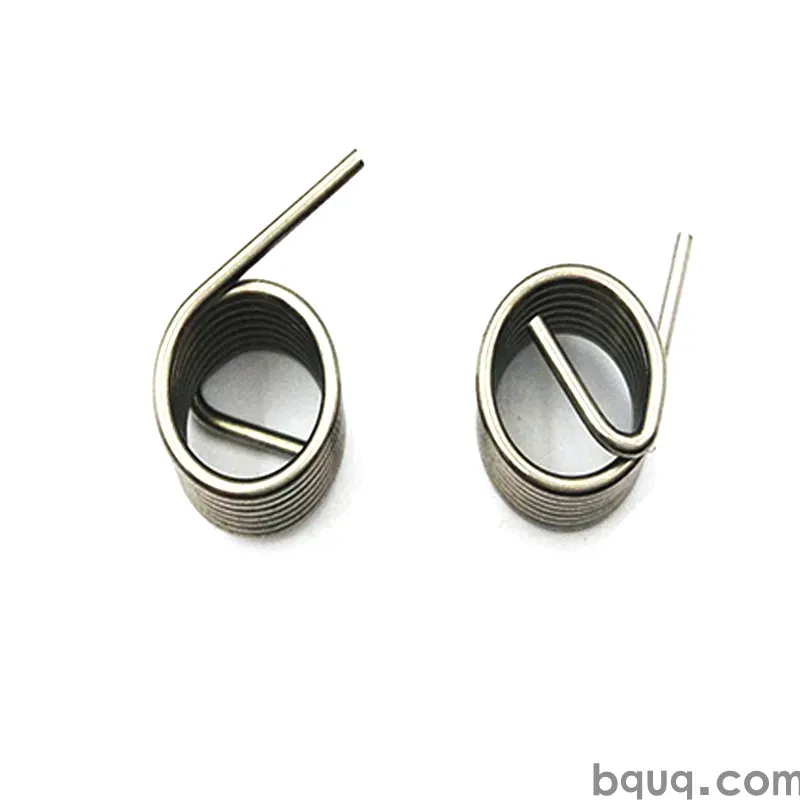

If the original design used spring clips or screws, replace consumable hardware. Reused screws with deformed threads will not hold torque. Reused springs may have relaxed. Where a heat sink is CNC machined with tapped holes, check thread condition before reassembly — a stripped hole in an aluminum base is a common rework casualty, and it is repairable with a helicoil but not with a longer screw.
Cure and verify
Adhesive joints need the full specified cure schedule. A partially cured joint may pass a functional test and then fail under thermal cycling. After cure, verify with a short thermal soak: run the assembly at rated power and confirm the case-to-ambient delta matches your baseline. A rise of more than 15% versus the original build means something in the stack-up is wrong.
When is rework not worth doing?
Rework is a cost decision as much as a technical one. Walk away when:
- The heat sink base is bent or the fin field is crushed. Fin straightening rarely restores the original surface area in a predictable way.
- The substrate has lifted pads, cracked solder joints, or delaminated copper. You are repairing the heat sink, not the board.
- The joint was soldered or sintered. Field rework is not viable.
- The part is a low-cost extruded profile where a replacement costs less than an hour of technician time.
For high-value assemblies — copper-core heat sinks, vapor chamber units, or custom CNC machined bases with tight flatness specs — rework is almost always the better economic choice. A replacement CNC machined heat sink with a ±0.005 mm base flatness spec takes real machining time; recovering a good one takes twenty minutes.
Designing for reworkability in the first place
If your product will ever be serviced, design the joint to come apart. Practical measures:
- Prefer mechanical clamping over adhesive wherever the thermal budget allows.
- If adhesive is required, specify a reworkable grade with a defined softening temperature and document it in the assembly drawing.
- Keep the heat sink base accessible — no adhesive bead running under an overhanging component.
- Specify flatness and surface finish on the drawing so a replacement part actually fits. A base flatness callout of 0.05 mm over the contact area is a reasonable default for a machined interface.
- Standardize on one TIM family across the product line so technicians stock one solvent and one replacement material.
These choices cost nothing at the design stage and save hours in the field. They also make the difference between a repair program that works and one that quietly ships marginal units. Our guide to TIM pump-out covers the related failure mode where the interface material migrates out of the joint over thermal cycles — worth reading alongside this one, because a reworked joint with the wrong grease will pump out faster than the original.
Sourcing replacement heat sinks for rework programs
When rework volume is high enough, buying replacement heat sinks in small batches is often cheaper than recovering old ones. This is where flexible MOQ matters. A factory that runs extruded heat sinks on standard profiles can often supply a replacement batch quickly, while a custom heat sink with a specific hole pattern and flatness spec needs a short setup window.
Two things to specify on any replacement order, especially for a rework program:
1. Base flatness and surface finish, measured over the contact area, not the whole base.
2. Interface material compatibility — if the original used a phase-change pad, do not substitute grease without re-validating the thermal budget.
Incoming inspection matters here too. Our article on heat sink quality inspection covers the checks that catch a bad lot before it reaches the assembly line. For copper-based assemblies, copper core heat sinks explains where the extra cost buys you performance and where it does not.
Frequently Asked Questions
Q: Can a heat sink bonded with thermal adhesive be removed without damaging the board?
A: Yes, if you heat the joint to 60-80 °C and load it in shear rather than peel. A hot plate under the board gives more even heating than a heat gun. Slow twisting works; prying with a screwdriver usually does not. The heat sink itself is almost always reusable after cleanup, but the PCB side depends on how much force you applied and how well the board was supported.
Q: How much does thermal performance degrade after one rework cycle?
A: Typically 5-15% higher interface resistance compared with a clean original build, assuming full residue removal, fresh TIM, and restored clamping force. Degradation above 15% usually points to a contaminated surface, a bent base, or lost clamp pressure rather than the rework itself. Measure case-to-ambient delta at rated power and compare against your baseline to confirm.
Q: Can I reuse the old thermal pad or grease?
A: No. Cured adhesive will not re-bond properly, and used grease or pad material has already lost volatiles and been contaminated by dust and oxide particles. Reusing it is the single most common cause of a reworked assembly failing thermal test. Interface material is a consumable — budget for fresh material on every rework cycle.
Q: What solvent should I use to clean heat sink surfaces?
A: Isopropyl alcohol at 90% or higher is the standard choice and is safe for aluminum, copper, and most PCB finishes. Dedicated TIM removers work well on silicone-based residues. Avoid acetone on painted or anodized surfaces and on many plastics. Use a fresh lint-free cloth for each pass, and do not touch the cleaned surface with bare hands.
Q: How do I know if a heat sink is too damaged to rework?
A: Reject it if the base is bent beyond 0.05 mm flatness deviation over the contact area, if fins are crushed across a significant portion of the field, if mounting holes are stripped beyond one thread repair, or if the base shows cracks. For low-cost extruded profiles, compare the replacement cost against technician time — replacement usually wins.
