Collet Chucks for Drilling: Keeping Holes On Location
Short answer: A collet chuck keeps drilled holes on location because it centres the drill on the spindle axis to within a few microns and holds it there without the jaw-to-jaw variation of a scroll chuck. On a good ER32 or TG100 holder with a ground collet and a h6 shank drill, total indicated runout at 3×D is typically 5–15 µm, versus 30–100 µm for a three-jaw chuck. That difference maps almost directly to hole position error: keep TIR under 10 µm and you can hold ±0.02 mm true position on a 5 mm hole without a spot drill. Above 25 µm TIR, expect 0.05–0.10 mm wander and reamed holes that cut oversize.
Hole location is one of those characteristics that looks like a drilling problem and is almost always a workholding problem. The drill does not decide where the hole goes; the holder does. If the drill axis is tilted or offset from the commanded position, the chisel edge walks, the margin rubs, and the hole lands somewhere other than the print.
This article breaks down how collet chucks for drilling actually control hole position, where the error budget goes, and how to pick between ER, TG and 5C systems for a given tolerance.
Why does a collet chuck hold hole position better than a jaw chuck?
A three-jaw or four-jaw chuck locates the tool on three or four discrete contact points. Each jaw has its own lead error, its own wear, and its own clamping force. When you tighten the chuck, the tool is pushed toward the average of those contact points — a value that changes every time you re-chuck, and changes again as the jaws wear unevenly.
A collet is a closed ring of elastic steel. When the nut drives it into the holder taper, the collet collapses uniformly around the tool shank. Contact is 360°, so the tool is centred by the whole circumference rather than by three or four pads.
The practical consequences:
- Repeatability. Re-chucking the same drill in a collet typically returns it to within 2–5 µm of its previous position. A jaw chuck may shift 20–50 µm.
- Symmetry. Collet clamping is radially symmetric, so it does not bend the drill shank. Jaw chucks can bow a small drill by several microns, which tilts the point off-axis.
- Stiffness per unit size. A collet nut sits close to the tool, minimising overhang — the single biggest driver of drill deflection.
For drilling specifically, the second point matters more than most people realise. A 3 mm carbide drill has a shank stiffness measured in a few N/µm. Bend it 5 µm at the shank and the point moves 5 µm plus whatever the overhang amplifies.
The hole position error budget
Position error in a drilled hole comes from four sources. Only one of them is the drill.
| Error source | Typical contribution | Notes |
|---|---|---|
| Spindle + holder + collet TIR | 5–20 µm | Dominant and controllable |
| Drill point asymmetry (web, chisel edge) | 5–30 µm | Grinding quality, point angle |
| Thermal growth during cycle | 3–15 µm | See collet thermal stability |
| Machine positioning + servo error | 2–10 µm | Ball screw, encoder, backlash |
| Workpiece deflection / clamping | 5–50 µm | Thin walls, unsupported sections |
If your true-position tolerance is 0.05 mm (±0.025 mm radial), you need the root-sum-square of these to sit comfortably below it. That usually means holding holder TIR under 10 µm and keeping the drill sharp.
The table also explains why adding a spot drill helps: it removes the drill-point asymmetry term from the equation by giving the drill a conical seat to follow.
How much runout is acceptable?
| Application | Max TIR at 3×D | Practical holder choice |
|---|---|---|
| Reamed or bored hole, IT7 | ≤ 5 µm | Precision ER or TG, ground collet, h4 shank |
| Drilled hole, ±0.05 mm position | ≤ 15 µm | Standard ER32/ER25 with quality collet |
| Drilled hole, ±0.10 mm position | ≤ 30 µm | ER collet or good keyless chuck |
| Clearance / tapped hole | ≤ 50 µm | Any collet chuck in good condition |
These are indicative values for a well-maintained spindle. Your machine, coolant, and material will shift them.
ER vs TG vs 5C: which collet chuck for drilling?
All three are single-angle or double-angle collet systems, but they behave differently under drilling loads.
| System | Collet angle | Grip range per collet | Typical TIR | Best for |
|---|---|---|---|---|
| ER (ER11–ER50) | 8° single angle | 1 mm | 5–15 µm | General drilling, wide shank range |
| TG (TG100, TG150) | 8° with more contact length | 0.5 mm | 3–10 µm | Higher rigidity, tighter grip |
| 5C | 10° + body bore | Fixed bore sizes | 3–8 µm | Lathe drilling, bar work, quick change |
| DA | 8° double angle | 0.5 mm | 5–12 µm | Small drills, tight spaces |
ER collets are the default. ER32 covers 2–20 mm shanks and is stiff enough for most drilling up to 16 mm in steel. The 1 mm collapse range per collet means you can cover a wide drill inventory with a modest set.
TG collets have a longer taper contact and a thicker wall. That translates into higher gripping torque and less shank slip under high feed. If you are drilling with carbide at aggressive parameters, TG100 or TG150 is the safer choice.
5C collets are dead-length and quick-change, which suits lathe drilling and Swiss work where you are swapping between bar stock and tools. A 5C collet chuck with a ground bore will hold TIR under 8 µm reliably.
If you are choosing a system from scratch, the selection logic in our collet system selection guide covers the trade-offs in more depth.
What about hydraulic and power chucks?
Hydraulic expansion holders give the best runout of any toolholding method — often under 3 µm — because the clamping force is applied by an oil-filled membrane with no mechanical taper error. They are also the most expensive and the least tolerant of dirty shanks.
For high-volume drilling on a lathe, a power chuck or pneumatic chuck may be the better answer for the workpiece side, while a collet handles the tool. BQUQ supplies both sides of that equation.
Overhang, stiffness and the L/D rule
Drill deflection scales with the cube of overhang. Going from 40 mm to 60 mm of gauge length on a 6 mm drill roughly triples the lateral compliance.
Rules of thumb that hold up in practice:
- Keep gauge length under 4× drill diameter for HSS, 6× for carbide where possible.
- Use a collet chuck extension bar or a short-gauge holder rather than a long drill where the geometry allows.
- For deep holes, drill in pecks and accept that position drifts with depth — the first 1×D sets the location, everything after follows it.
- Never use a drill shank that has been scored by a jaw chuck in a collet. The high spots reduce contact and add runout.
A collet chuck with nut sits closer to the spindle face than most jaw chucks of equivalent capacity, which is one reason it wins on stiffness even before you consider runout.
Setup practices that protect hole location
The holder is only half the story. These practices are what separate a shop holding ±0.02 mm from one fighting ±0.08 mm.
1. Clean the taper and collet every change. A single chip between collet and holder taper can add 10–20 µm of runout.
2. Torque the nut to spec. Under-torquing lets the drill slip; over-torquing bell-mouths the collet and ruins its collapse geometry.
3. Insert the drill to the full collet depth. Shallow insertion concentrates load on a short band and reduces grip.
4. Measure TIR at the drill margin, not the shank. Shank runout can be perfect while the point runs out.
5. Index the collet. Rotating a collet 180° in the nut sometimes cancels residual runout.
6. Replace collets on a schedule. A collet that has been over-torqued or run dry loses elasticity permanently. See collet repair and refurbishment for what can and cannot be recovered.
Thermal effects during the cycle
As the spindle warms, the holder grows. A 100 mm steel holder grows about 1.2 µm per °C. Over a 10 °C warm-up that is 12 µm of axial shift — which changes depth more than position, but also changes the effective preload on the collet. Our article on collet runout and thermal behaviour covers measurement practice for this.
Matching the collet chuck to the drilling operation
Different drilling jobs push different requirements.
Small-diameter drilling (under 3 mm)
Use ER11, ER16 or DA collets. Runout dominates because the drill is fragile. A high-precision collet ground to better than 5 µm and a mirror-polished bore reduces friction and chip adhesion. Peck aggressively — small drills break from chip packing far more often than from load.
Medium drilling (3–12 mm)
ER25, ER32 and TG100 cover this range well. This is where most production drilling lives, and where a 10 µm TIR target pays for itself in eliminated spot drilling.
Large drilling (over 12 mm)
Move to ER40, ER50 or a TG150. Consider a stub drill for the first 1×D to establish location, then a longer drill to depth. At this size, machine thrust and fixturing stiffness often matter more than holder runout.
Lathe and Swiss drilling
On a lathe, the drill is stationary and the part rotates. Here the collet chuck holds the drill in the turret or tailstock, and a separate collet holds the bar. Both matter. A swiss-type guide bushing and a well-fitted collet on the bar side determine whether the drilled hole is concentric with the turned OD. BQUQ's power chucks and Swiss workholding range covers the workpiece side, while auto-lathe collets handle bar feed.
What BQUQ makes and how to specify

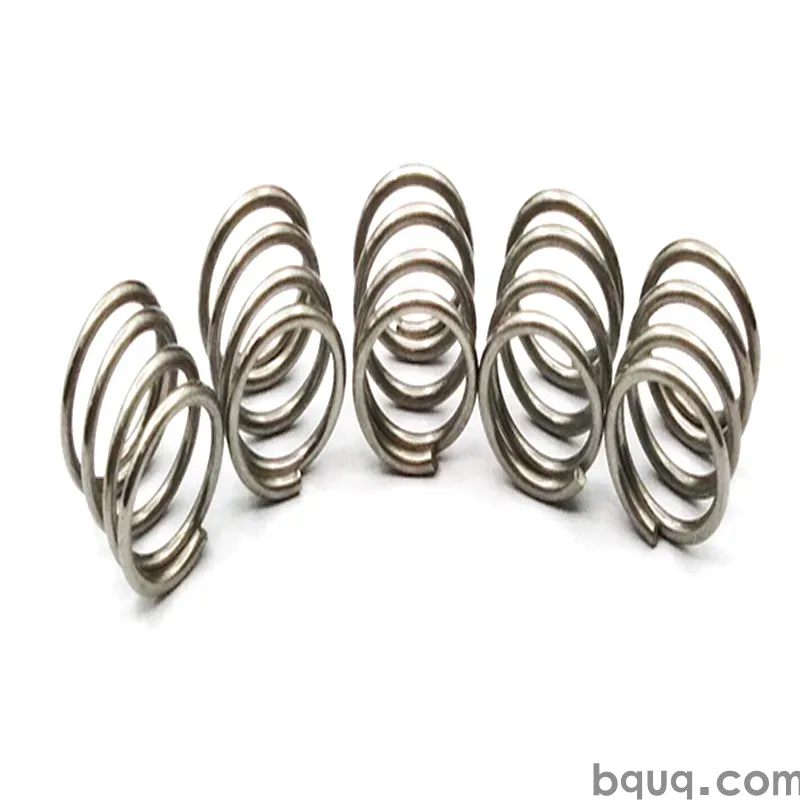

BQUQ runs four production lines in one Dongguan factory: CNC machining to ±0.005 mm, metal stamping, custom springs, and heat sinks. On the collet side we produce ER, TG, 5C, DA, and auto-lathe collet series, plus collet chucks, nuts, spanners and extension bars.
For a drilling application, send us:
- Drill shank diameter and tolerance class (h6, h8, etc.)
- Holder interface (BT30/40/50, HSK, CAT, straight shank, lathe turret)
- Required TIR at a stated gauge length
- Coolant-through requirement
- Annual volume and changeover frequency
We quote in 12 working hours and work with flexible MOQ, so a first article run does not require a full production commitment. Custom bores, extended collets, and special nut geometry are all routine.
If you are still deciding between a collet chuck and a jaw chuck for a mixed-operation machine, our collet chuck design notes walk through the trade-offs, and the tool holder collet chuck range shows what is available off the shelf.
Frequently Asked Questions
Q: Can a collet chuck eliminate the need for a spot drill?
A: Often, yes. If holder TIR is under 10 µm and the drill point is ground symmetrically, a carbide drill will typically hold ±0.02–0.03 mm position on a 5 mm hole in aluminium without spotting. In steel, or where the surface is interrupted or inclined, a spot drill still pays for itself by removing the point-asymmetry error term.
Q: How often should I replace a collet used for drilling?
A: In production, inspect collets every 500–1,000 tool changes. Replace when TIR at the tool margin exceeds twice the as-new value, when the bore shows polishing or galling, or when the collet no longer springs back freely. Over-torqued collets lose elasticity permanently and cannot be recovered by cleaning.
Q: Does a TG collet chuck really hold better than ER?
A: TG collets have a longer taper contact and thicker walls, which raises gripping torque and reduces shank slip under high feed. In side-by-side tests on the same spindle, TG typically shows 2–5 µm less runout than an equivalent ER size. The trade-off is a narrower collapse range per collet and higher collet cost.
Q: What causes a drilled hole to drift in one direction?
A: Consistent directional drift usually points to a bent or misaligned spindle, a worn holder taper, or a drill with an asymmetric point. Check holder TIR first with the drill in place, then check the drill point on an optical comparator. Random scatter, by contrast, usually indicates chip interference or inconsistent clamping.
Q: Can collet chucks handle through-coolant drilling?
A: Yes, provided the holder, collet and nut are all sealed for coolant-through service. Standard collets leak coolant around the shank and lose pressure at the drill tip. Specify a sealed collet and a nut with the correct O-ring groove if you are drilling deeper than 3×D in steel or stainless.
