Deep Draw vs Shallow Draw Stamping: When to Use Each

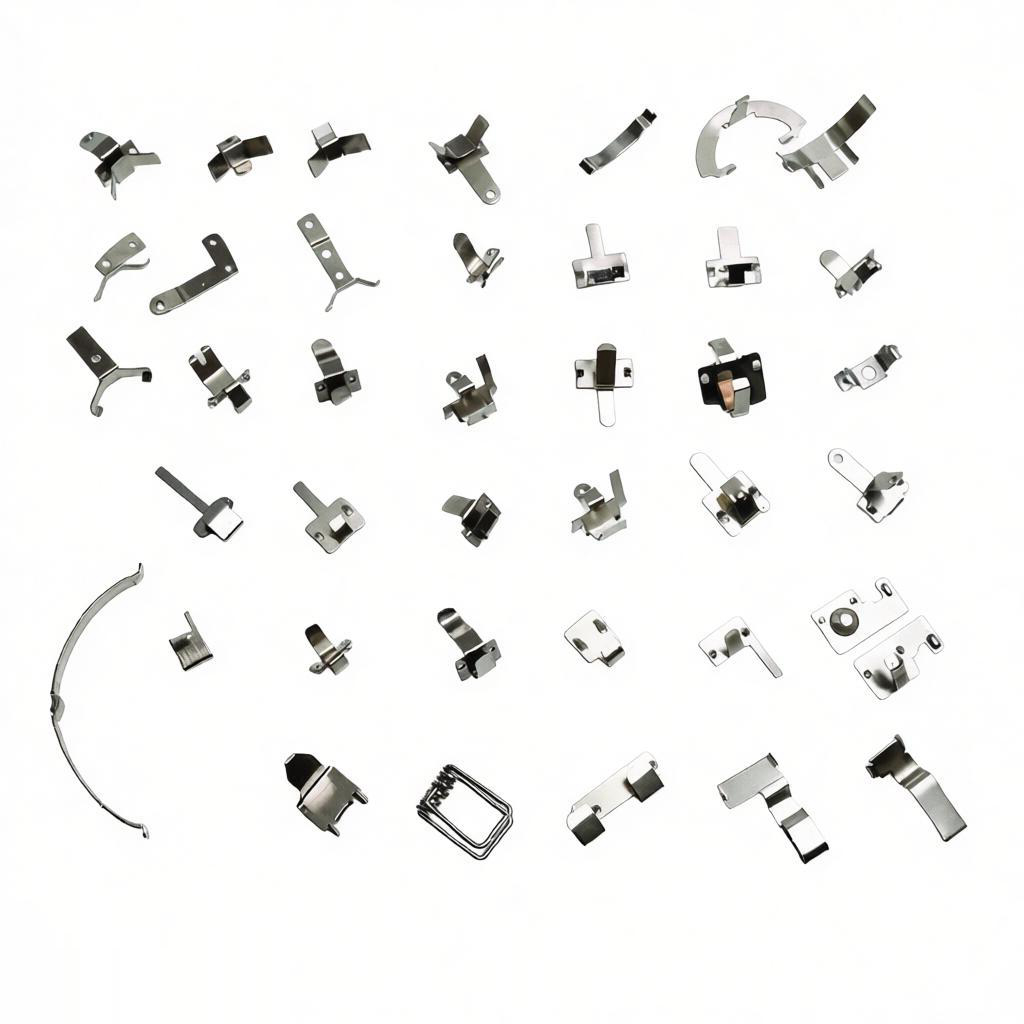

Introduction to Deep Draw and Shallow Draw Stamping
In the world of metal stamping, understanding the difference between deep draw and shallow draw processes is crucial for selecting the right manufacturing method. Both techniques involve forming sheet metal into desired shapes using a punch and die, but they differ significantly in depth, complexity, and application. This article provides a comprehensive comparison to help you decide when to use each method.
Comparison Table: Deep Draw vs Shallow Draw
| Feature | Deep Draw Stamping | Shallow Draw Stamping |
|---|---|---|
| Depth-to-Diameter Ratio | Greater than 1:1 (typically 2:1 or more) | Less than 1:1 (typically 0.5:1 or less) |
| Number of Draws Required | Multiple draws with annealing | Single draw or few steps |
| Tooling Complexity | High – requires progressive dies and blankholders | Low to moderate – simple dies |
| Material Thinning | Significant – requires careful control | Minimal |
| Production Speed | Slower due to multiple steps | Faster, higher throughput |
| Typical Applications | Automotive components, sinks, cans, pressure vessels | Panels, brackets, covers, enclosures |
| Cost per Part | Higher for low volumes, economical for high volumes | Lower overall, especially for simple parts |
| Material Utilization | Lower due to waste and trimming | Higher, less scrap |
When to Use Deep Draw Stamping
High Depth Requirements
Deep draw stamping is ideal when the final part has a depth greater than its diameter, such as in cylindrical containers, automotive fuel tanks, or heat exchanger shells. The process involves multiple progressive draws to gradually form the metal without tearing.
Complex Shapes and Features
Parts requiring intricate geometries, sharp corners, or embossed details often benefit from deep draw. The controlled material flow allows for precise forming of complex profiles.
High Volume Production
Once tooling is set up, deep draw stamping is highly efficient for mass production. Industries like automotive and appliance manufacturing rely on it for cost-effective large-scale runs.
Material Considerations
Deep draw works best with ductile materials like low-carbon steel, aluminum, or stainless steel. Materials must withstand significant elongation without cracking.
When to Use Shallow Draw Stamping
Shallower Parts
For parts with depth less than half the diameter, shallow draw is the go-to method. Examples include flat panels, brackets, and simple covers. The process is straightforward and requires less tooling.
Low to Medium Volumes
Shallow draw is economical for smaller production runs because tooling costs are lower and setup is quicker. This makes it suitable for prototyping or custom fabrication.
Speed and Efficiency
With fewer drawing stages, shallow draw stamping is faster, reducing cycle time. It is ideal when lead times are tight.
Budget Constraints
If your project has limited budget, shallow draw minimizes upfront investment in dies and presses. It also reduces scrap rates, improving material utilization.
Advantages and Disadvantages
Deep Draw Stamping
Advantages: Ability to create deep, seamless parts; high strength-to-weight ratio; excellent surface finish; consistent quality in high volumes.
Disadvantages: High tooling cost; slower production; risk of wrinkling or tearing; requires experienced setup.
Shallow Draw Stamping
Advantages: Lower cost; faster cycle times; simpler tooling; less material waste; easy to modify designs.
Disadvantages: Limited depth capability; not suitable for intricate internal features; may require additional operations like bending.
Key Factors Influencing Choice
When deciding between deep draw and shallow draw, consider these factors:
Part Geometry: Depth, diameter, wall thickness, and feature complexity.
Material Type: Ductility, thickness, and forming limits.
Production Volume: High volumes justify deep draw tooling investment.
Tolerance Requirements: Deep draw can achieve tighter tolerances with proper die design.
Cost Constraints: Shallow draw often wins for low-budget projects.
Recommendation Matrix
| Scenario | Recommended Process |
|---|---|
| Depth > Diameter | Deep Draw |
| Depth < Half Diameter | Shallow Draw |
| High Volume (100k+ parts) | Deep Draw after initial investment |
| Low Volume (1k-10k parts) | Shallow Draw |
| Complex Shape with Stiffeners | Deep Draw |
| Simple Flat Geometry | Shallow Draw |
| Limited Budget | Shallow Draw |
Conclusion
Choosing between deep draw and shallow draw stamping depends on your part design, production needs, and budget. Deep draw excels in creating deep, robust components at scale, while shallow draw offers flexibility and cost savings for simpler parts. By evaluating depth, volume, and material, you can optimize your metal stamping project. For expert guidance, contact our team to discuss your specific requirements.
Frequently Asked Questions
What is the main difference between deep draw and shallow draw stamping?
The main difference is the depth-to-diameter ratio. Deep draw stamping has a ratio greater than 1:1, typically 2:1 or more, while shallow draw stamping has a ratio less than 1:1, typically 0.5:1 or less. This affects the number of draws required, tooling complexity, and production speed.
When should I choose deep draw stamping over shallow draw stamping?
Choose deep draw stamping when the part has a depth greater than its diameter, such as cylindrical containers, automotive fuel tanks, or heat exchanger shells. It is also suitable for complex shapes with sharp corners or embossed details, and for high-volume production where tooling costs can be amortized.
What materials are best suited for deep draw stamping?
Deep draw stamping works best with ductile materials like low-carbon steel, aluminum, or stainless steel. These materials must withstand significant elongation without cracking during the multiple progressive draws and annealing steps required in the process.
Is shallow draw stamping more cost-effective than deep draw stamping?
Yes, shallow draw stamping generally has lower overall cost per part, especially for simple parts. It requires fewer draws, simpler tooling, and has higher material utilization with less scrap. However, deep draw stamping becomes economical for high-volume production despite higher initial tooling costs.
