Effective Burr Reduction Techniques in Metal Stamping
Understanding Burrs in Metal Stamping

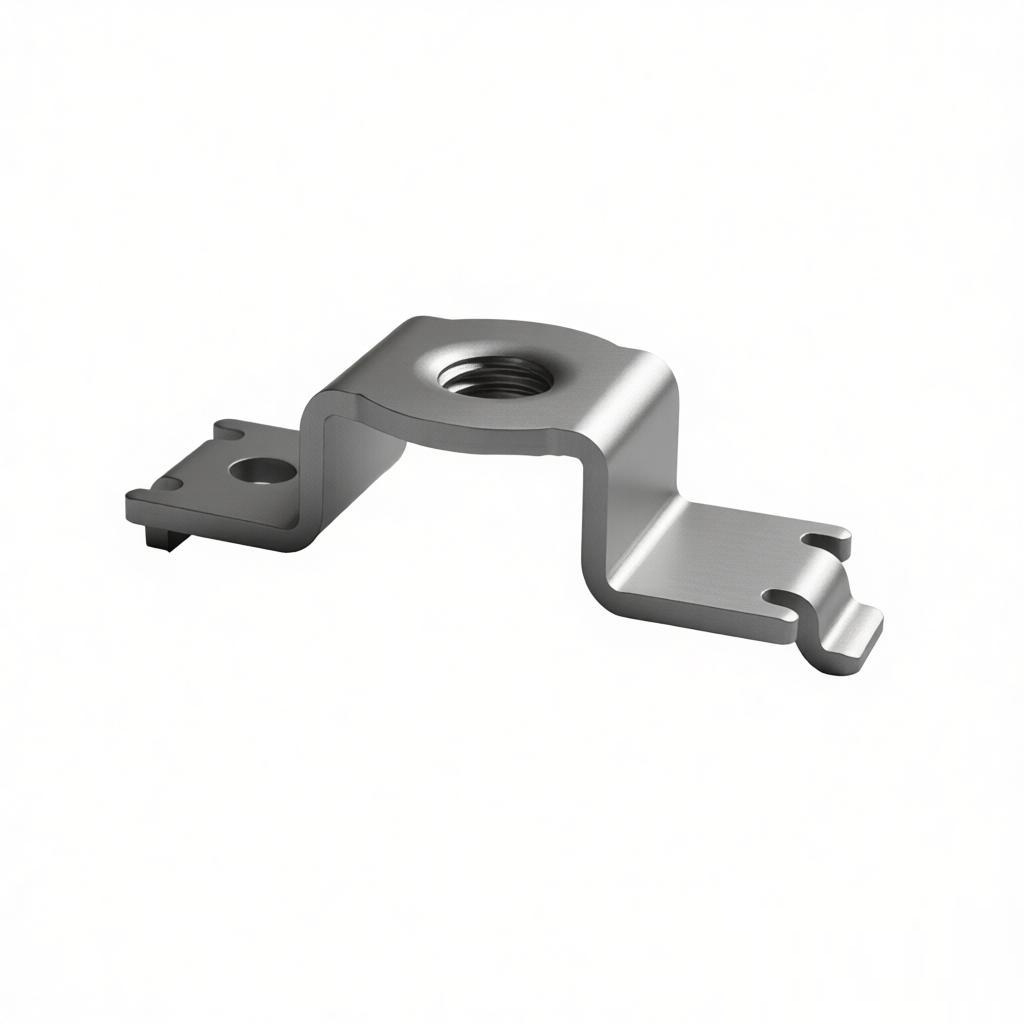

Burrs are unwanted raised edges or small pieces of material that remain attached to a workpiece after machining or stamping. In metal stamping, burrs form when the punch and die cut through the metal, causing plastic deformation at the edges. They can appear on both the punch side (rollover) and die side (fracture zone). Common types include rollover burrs, fracture burrs, and tear burrs. The size and shape depend on material properties, tool condition, and process parameters. Understanding these factors is essential for effective burr reduction.
The Impact of Burrs on Product Quality and Safety
Burrs compromise product quality in several ways. They can interfere with assembly, cause misalignment, or lead to stress concentration and premature failure. In electrical components, burrs may short circuits. Sharp burrs pose safety risks during handling. Additionally, burrs increase friction and wear, reduce precision, and require secondary deburring operations that add cost and time. For high-precision industries like automotive, aerospace, and electronics, burr control is critical.
Key Burr Reduction Techniques
Optimizing Die Clearance
Die clearance—the gap between punch and die—is the most influential parameter. Too large a clearance leads to excessive rollover and large burrs. Too small causes tool wear and increased fracture burrs. Optimal clearance typically ranges from 5% to 10% of material thickness for mild steel. Use recommended clearance values for specific materials (see table below). Regular clearance verification and adjustment using shims or precision dies is essential.
| Material | Thickness (mm) | Optimal Clearance (per side %) |
|---|---|---|
| Steel | 0.5–1.5 | 5–7% |
| Aluminum | 0.5–3.0 | 6–8% |
| Stainless Steel | 0.5–2.0 | 4–6% |
| Copper | 0.5–2.0 | 7–9% |
Tool Design and Maintenance
Sharp cutting edges produce cleaner cuts with fewer burrs. Regularly inspect and sharpen punches and dies. Use high-grade tool steel with coatings like TiN or CrN to reduce friction and wear. Incorporate shear angles on the punch face to distribute cutting forces and minimize burr formation. Ensure proper alignment and clearance uniformity. Replace worn tools promptly.
Material Selection
Ductile materials (e.g., low-carbon steel) tend to produce larger burrs than brittle ones. Choose materials with lower elongation and higher hardness when possible. Use pre-treated or stress-relieved materials to minimize deformation. For critical applications, consider materials like beryllium copper or hardened steel that generate smaller burrs.
Process Parameters: Speed, Pressure, Lubrication
Stamping speed affects heat generation and material flow. Lower speeds reduce burr height by allowing controlled deformation. Too high speed may cause tearing. Lubrication reduces friction and heat; use oil-based or synthetic lubricants designed for stamping. Apply consistent lubrication to both punch and die. Pressure settings should be adjusted to maintain proper penetration without overloading.
Advanced Methods: Downsizing, Vibration, Laser
Downsizing involves using a secondary operation with a smaller die to shear off burrs. Vibration-assisted stamping uses oscillating motion to reduce friction and improve edge quality. Laser deburring is a non-contact method that melts burrs quickly. Other techniques include electrochemical deburring (ECD) and abrasive flow machining (AFM). These are suitable for complex geometries or high-volume production.
Practical Tips for Implementing Burr Control
Perform regular burr measurement with micrometers or vision systems. Set acceptable burr height limits (e.g.,
