Metal Stamping Quality Control: Inspection Methods & Standards

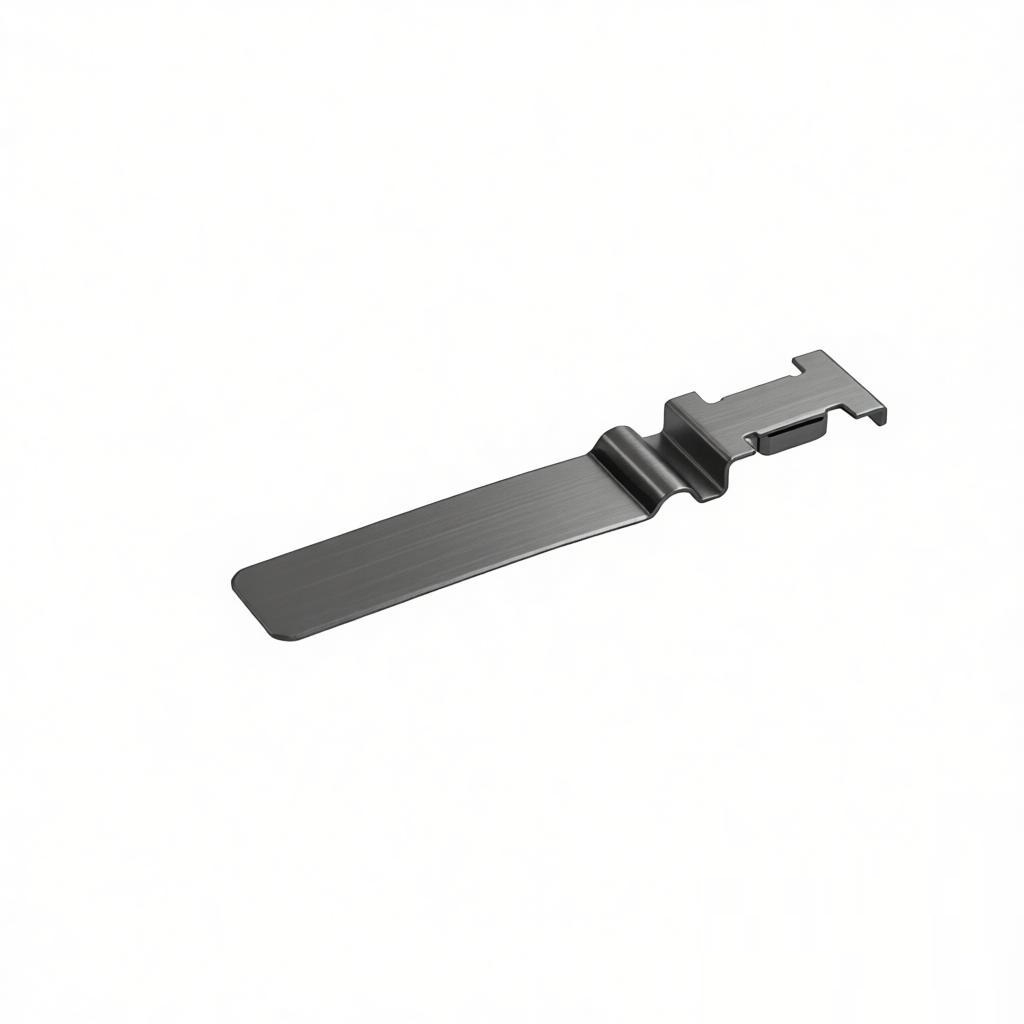

Introduction
Metal stamping is a high-speed, high-volume manufacturing process used to produce complex parts with tight tolerances. Ensuring consistent quality in stamped parts is critical for safety, functionality, and cost efficiency. This comprehensive guide covers the essential inspection methods and standards used in metal stamping quality control, helping manufacturers reduce defects, improve productivity, and meet customer requirements.
Importance of Quality Control in Metal Stamping
Quality control (QC) in metal stamping is not just about inspecting final products—it's a systematic approach to monitor and control the entire production process. Effective QC minimizes scrap, reduces rework, prevents costly recalls, and enhances brand reputation. In industries like automotive, aerospace, and electronics, even minor deviations in dimensions or material properties can lead to catastrophic failures. Therefore, implementing rigorous inspection methods and adhering to international standards is non-negotiable.
Key Quality Characteristics in Metal Stamping Parts
To effectively inspect stamped parts, one must first understand the critical quality attributes that define a conforming product. These include:
Dimensional Accuracy: Tolerances on features such as hole diameters, edge distances, bend angles, and overall length.
Surface Finish: Acceptable levels of scratches, dents, burrs, or tool marks.
Material Integrity: No cracks, fractures, or excessive thinning caused by stretching or bending.
Heat Treatment: Proper hardness and strength if post-stamping operations are involved.
Cleanliness: Absence of oil, grease, or other contaminants that could affect assembly or performance.
Common Metal Stamping Inspection Methods
Visual Inspection
Visual inspection is the first line of defense and should be performed at multiple stages—after blanking, forming, and final finishing. Operators check for visible defects like burrs, cracks, scratches, tool marks, and discoloration. While simple, this method requires trained eyes and proper lighting. Magnification tools or automated vision systems are often used for high-speed production lines.
Dimensional Measurement
Precision measurement is the backbone of metal stamping QC. Common tools include:
Calipers and Micrometers: For external and internal dimensions up to 0.01 mm accuracy.
Coordinate Measuring Machines (CMM): For complex geometries with multiple datums and tight tolerances.
Optical Comparators: To project a magnified silhouette of the part onto a screen for comparison with a master profile.
Laser Scanners: For non-contact 3D scanning of freeform surfaces.
Best practice is to follow a measurement system analysis (MSA) to ensure gauge repeatability and reproducibility (GR&R).
Surface Roughness Testing
Surface finish affects friction, wear, and appearance. Profilometers measure Ra (arithmetic roughness), Rz (average peak-to-valley), and other parameters. For fine-blanking or parts requiring sealing surfaces, surface roughness specifications must be strictly controlled. Contact and non-contact (optical) profilometers are available.
Hardness Testing
Hardness indicates material strength and consistency. Common tests include Rockwell (HRB/HRC), Brinell (HB), and Vickers (HV). For thin stamped parts, microhardness testers with low loads are preferred. Hardness testing is especially important for parts that undergo subsequent heat treatment or are used in high-stress applications.
Material Composition Analysis
Chemical composition verification is critical when using different alloys or re-certifying scrap materials. Spectrometers (OES, XRF) provide rapid elemental analysis. Ensuring the correct material grade (e.g., 304 stainless vs. 316) prevents premature failure.
International Standards for Metal Stamping Quality
Adhering to established quality standards is essential for global competitiveness. Key standards include:
| Standard | Scope | Relevance to Stamping |
|---|---|---|
| ISO 9001:2015 | Quality management systems | General requirements for process control and continuous improvement. |
| IATF 16949 | Automotive quality management | Specific to automotive stamping with additional focus on defect prevention and the automotive core tools (APQP, PPAP, FMEA, SPC, MSA). |
| AS9100 | Aerospace quality management | For stamping parts used in aircraft, requiring traceability, first article inspection (FAI), and strict documentation. |
| ISO 2768 | General tolerances | Provides tables for linear and angular tolerances without individual tolerance indications. |
| ASTM Standards (e.g., ASTM A109) | Material specifications | Defines mechanical properties and dimensions for stamped steel parts. |
Statistical Process Control (SPC) in Stamping
Rather than relying solely on end-of-line inspection, SPC allows real-time monitoring of the stamping process. Key tools include:
Control Charts (X-bar R, X-bar S, individuals): Tracking critical dimensions over time to detect shifts or trends before parts go out of tolerance.
Process Capability Studies (Cp, Cpk): Quantifying how well the process meets specifications. A Cpk of 1.33 or higher is typical.
Pareto Analysis: Prioritizing defect types to focus improvement efforts.
By implementing SPC, manufacturers can reduce inspection costs and prevent defects proactively.
Practical Tips for Effective Quality Control
First Article Inspection (FAI): Perform a comprehensive check on the first part of every new batch or after a tool change to validate the setup.
Gauge Calibration: Regularly calibrate all measurement tools according to ISO 10012 or internal standards to maintain accuracy.
Operator Training: Ensure operators understand critical features, use the correct inspection tools, and are trained in basic SPC charting.
In-process Checks: Schedule inspections at key steps: after blanking, after forming, and after any secondary operations (e.g., tapping, heat treating).
Document Everything: Maintain records of inspections, corrective actions, and process changes for traceability and continuous improvement.
Automate When Possible: Vision systems and in-line sensors can inspect 100% of parts at production speed, reducing human error.
Conclusion
Metal stamping quality control is a multifaceted discipline that combines visual checks, precision measurement, statistical analysis, and adherence to global standards. By implementing robust inspection methods—from simple calipers to advanced CMM and SPC—manufacturers can ensure that every stamped part meets the highest quality requirements. This not only reduces waste and rework but also builds trust with customers in automotive, aerospace, electronics, and other critical industries. Invest in your quality processes today to secure a competitive edge tomorrow.
