Reduce Metal Stamping Tooling Lead Time: 10 Tips

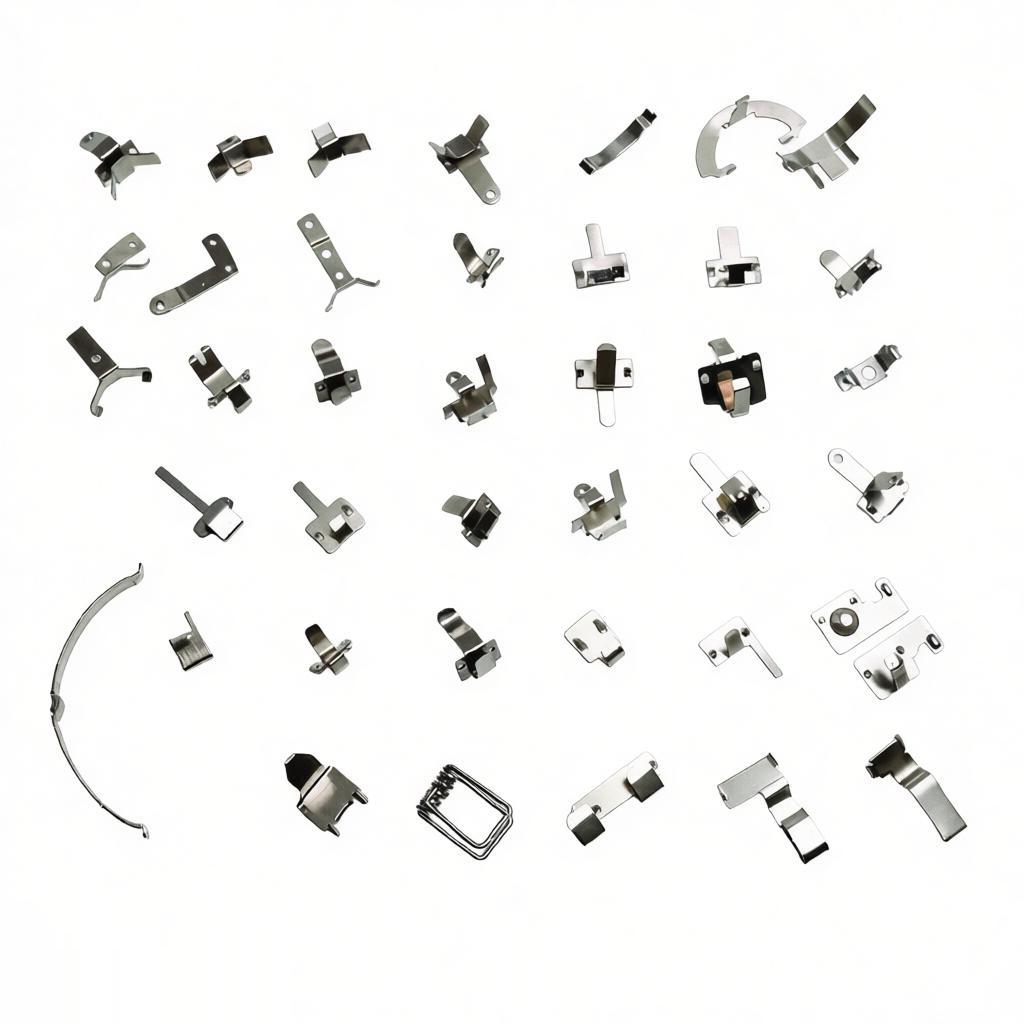

1. Early Supplier Involvement (ESI)
Involving your tooling supplier early in the design phase can dramatically reduce lead times. By sharing preliminary part designs and performance requirements, the toolmaker can identify potential manufacturability issues before the design is finalized. This collaboration allows for design adjustments that simplify tool construction, such as avoiding sharp corners or deep draws that require complex die stages.
Additionally, ESI enables the supplier to order long-lead materials (like special die steels or carbide inserts) in parallel with design finalization. This overlap of activities can shave weeks off the overall timeline. Consider holding a design-for-manufacturability (DFM) review with your tooling partner as soon as a concept is ready.
2. Standardize Tool Components
Using standardized components for punches, dies, guides, and springs can cut manufacturing time by up to 30%. Instead of designing custom items for each tool, select from catalogs of off-the-shelf parts from reputable suppliers like Misumi or Dayton. Standardization also simplifies inventory management and reduces the risk of errors during assembly.
When possible, design your tooling around modular systems. For example, interchangeable die inserts and common die sets allow you to reuse the same base tooling for multiple parts, with only minor changes. This approach not only speeds up initial tooling but also future revisions.
3. Leverage Simulation Software
Simulation tools like AutoForm or Dynaform enable virtual try-out of the stamping process. By simulating material flow, stress, and strain, you can detect potential issues (wrinkling, splitting, springback) before any steel is cut. This reduces the number of physical tryout hits required on the press, which is a major time sink.
Modern simulation software can also estimate cycle times and optimize the blank shape and strip layout. The investment in simulation pays off by minimizing rework and trial-and-error iterations on the shop floor. Many toolmakers now use simulation as a standard step, reducing lead times by 2–4 weeks.
4. Optimize Tool Path and Machining Strategies
High-speed machining (HSM) and adaptive clearing techniques can significantly reduce the time spent cutting the tool steel. Using smaller stepovers, high spindle speeds, and constant chip load strategies allows for faster material removal without sacrificing quality. Apply trochoidal milling for deep cavities to avoid full-width engagement.
Additionally, plan your machining sequence to minimize setups. Use 5-axis machines to access multiple faces of the die in one clamping. This eliminates repositioning errors and reduces total machining hours. Work with your shop to implement those strategies for faster tool manufacturing.
5. Consider Additive Manufacturing for Complex Inserts
For complex geometries like conformal cooling channels or intricate internal features, additive manufacturing (3D printing) can produce inserts much faster than traditional machining. You can print cores or inserts from metal powder (e.g., tool steel) and then finish-machine only the critical surfaces.
Lead time for additively manufactured inserts can be as short as a week, compared to 4–6 weeks for conventional EDM machining. Though still limited to certain applications, this technology is rapidly becoming cost-effective for reducing lead times. Evaluate whether your tooling has components that are more efficiently printed than machined.
6. Prioritize Tooling Design Reviews and Approval Gates
Streamline the approval process by setting clear milestones. After the initial DFM and simulation, present a detailed tooling design to the customer for sign-off. Use a structured checklist to cover all critical features: shut heights, trim diameters, lubrication points, and maintenance access. Avoid back-and-forth changes by involving all stakeholders early.
Implement a collaborative online review platform (e.g., GrabCAD Workbench) where comments are documented and changes tracked. A single revision cycle can take days; by staying organized and responsive, you can cut total review time by 50%.
7. Build a Relationship with a Reliable Tool Steel Supplier
Establish long-term agreements with tool steel mills or distributors to ensure priority access to raw materials. Staple materials like D2 or A2 tool steel can be pre-ordered based on historical usage, so they are on hand when a new project starts. Some suppliers offer expedited processing (cutting, grinding) for an extra fee that still saves time overall.
Also, consider using pre-hardened materials that eliminate the need for post-machining heat treatment. While they are more expensive to machine, the elimination of heat treat (and associated distortion correction) can cut lead time by 1–2 weeks.
8. Implement Lean Manufacturing in the Tool Room
Apply lean principles such as 5S, value stream mapping, and standardized work to your tool manufacturing processes. Organize workstations so that commonly used tools and inserts are within arm's reach, reducing motion waste. Map the flow from design to final tryout to identify bottlenecks and eliminate non-value-added steps.
Cross-train machinists so that multiple operators can work on different tool components simultaneously. A well-implemented lean system can improve throughput by 20% or more, directly reducing lead times. Regular kaizen events focused on tooling processes yield continuous improvements.
9. Use Rapid Prototyping and Temporary Tooling
When faced with very tight deadlines, consider using softer materials (e.g., aluminum or kirksite) for prototype or low-volume tooling. These tool sets can be machined much faster than hardened steel dies and allow you to validate the part design, obtain customer approval, and start production while the permanent tool is being built.
Although the tool life is limited (a few hundred to a few thousand parts), this approach can compress lead time from 12–14 weeks to 4–6 weeks. Once the final tool is ready, you can seamlessly transfer the process. This is especially useful for market testing or meeting urgent customer demands.
10. Communicate Clearly and Manage Expectations
Finally, the soft skill of communication can prevent unnecessary delays. Provide your tooling partner with a complete set of specifications: material type, thickness, part tolerances, annual volume, and press specifications. Incomplete or ambiguous data forces the toolmaker to ask questions, causing stops and starts.
Set realistic deadlines and involve the toolmaker in the scheduling process. If you need an eight-week tool, but the normal lead time is 12 weeks, be upfront and discuss options for rush charges or trade-offs (like simpler tooling). A collaborative relationship always yields faster and more accurate results.
