Precision Stamping Tolerances: Complete Guide
In the world of metal stamping, precision is paramount. Whether you're manufacturing components for automotive, aerospace, electronics, or medical devices, understanding and controlling tolerances is critical to ensuring part functionality, assembly fit, and cost-efficiency. This comprehensive guide delves into the intricacies of precision stamping tolerances, offering practical insights and best practices to help you achieve consistent, high-quality results.

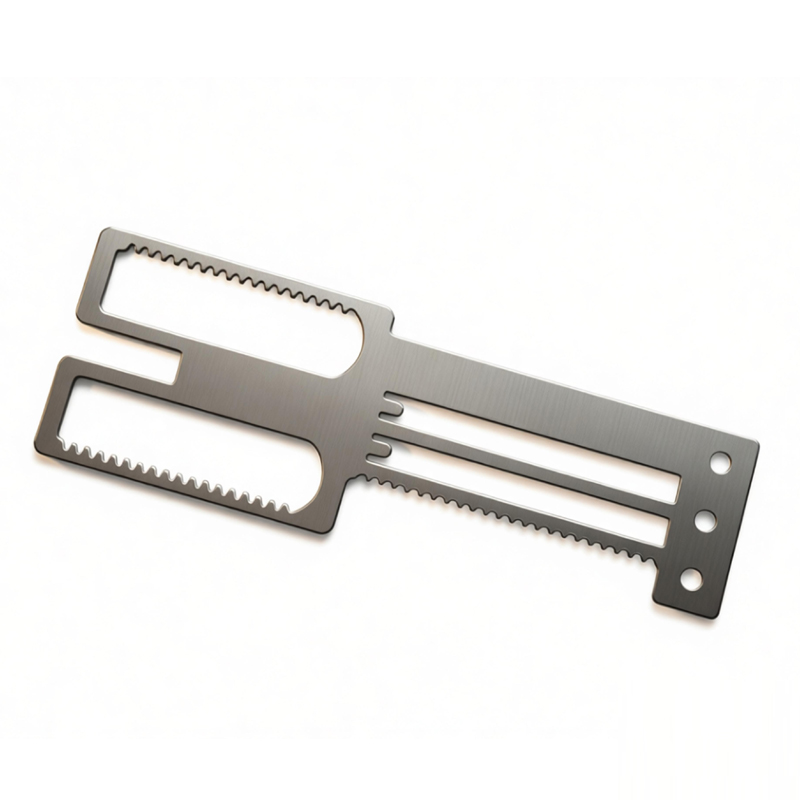

What Are Precision Stamping Tolerances?
Precision stamping tolerances refer to the permissible limits of variation in a stamped part's dimensions, geometry, and surface finish. They define the acceptable range within which a part must be manufactured to function correctly. Tolerances are specified on engineering drawings and are crucial for ensuring that parts fit together seamlessly, perform as intended, and meet quality standards.
Why Tolerances Matter in Metal Stamping
Accurate tolerances are the backbone of reliable manufacturing. Here's why they matter:
Interchangeability: Parts from different production runs must fit together without modification.
Quality and Performance: Tight tolerances ensure components meet design specifications, leading to better product performance.
Cost Control: Overly tight tolerances increase production costs due to slower cycle times, additional inspections, and higher scrap rates. Optimal tolerance balancing saves money.
Customer Satisfaction: Meeting tolerance requirements builds trust and reduces returns or rework.
Common Types of Tolerances in Stamping
Dimensional Tolerances
These control linear dimensions such as length, width, hole diameter, and thickness. They are typically expressed as ± values (e.g., 25.0 ± 0.1 mm). In precision stamping, dimensional tolerances can range from standard (±0.1 mm) to ultra-tight (±0.01 mm) depending on the application.
Geometric Tolerances (GD&T)
Geometric Dimensioning and Tolerancing (GD&T) defines form, orientation, and runout. Common symbols include flatness, parallelism, perpendicularity, and concentricity. For example, a stamped bracket may require a flatness tolerance of 0.05 mm to ensure proper sealing against a mating surface.
Surface Finish Tolerances
Surface roughness, measured in Ra (μm), is critical for parts that slide against others or require a specific aesthetic. Stamping can achieve finishes from 0.8 μm (fine) to 3.2 μm (coarse). Lubrication, die condition, and material hardness affect surface finish.
Angular Tolerances
Bend angles in stamped parts must be held within angular tolerances, often ±1° or tighter. This is vital for parts that nest or require consistent angles for assembly.
Factors Affecting Stamping Tolerances
Material Properties
Material type, thickness, hardness, and grain direction influence springback and formability. For instance, high-strength steels have greater springback, requiring compensation in die design.
Tooling Quality and Wear
Precision dies with hardened steel, proper clearance, and regular maintenance produce consistent parts. Worn punches or dies cause burrs, dimensional drift, and poor geometric tolerances.
Press Capability and Speed
Press tonnage, stiffness, speed, and slide parallelism affect part accuracy. High-speed presses may introduce vibration, reducing tolerance capability.
Lubrication and Cooling
Proper lubrication reduces friction, heat, and wear, helping maintain tolerances. Ineffective cooling can lead to thermal expansion and dimensional changes.
Part Geometry and Complexity
Sharp corners, deep draws, and tight radiuses are harder to control. Simple shapes with generous radii achieve tighter tolerances more easily.
Industry Standards for Stamping Tolerances
Common standards include ISO 2768 (general tolerances), DIN 6930 (for stampings), JIS B 0411, and ANSI Y14.5 (GD&T). Always reference the relevant standard when specifying tolerances. For precision parts, consider IT grades (e.g., IT7 to IT10) from ISO 286 for hole and shaft tolerances.
Practical Tips for Achieving Tight Tolerances
Design for Manufacturing (DFM): Add relief notches, avoid sharp corners, and use consistent radii.
Material Selection: Choose materials with stable properties and minimal springback.
Tooling Maintenance: Regularly inspect dies for wear and repair promptly.
Process Control: Monitor press parameters (tonnage, speed) and use SPC to detect drift early.
Progressive Die Design: For complex parts, use progressive dies with pilot holes and coining stations to maintain accuracy.
Lubrication: Use appropriate lubricants and apply consistently.
Inspection: Use CMM, optical comparators, and go/no-go gauges for verification.
How to Specify Tolerances on Your Drawings
Clear communication is essential. Follow these steps:
Indicate units (mm) and reference standards (e.g., ISO 2768-m).
Use GD&T symbols for critical features.
Specify tolerance classes for blanking, forming, and piercing operations.
Provide surface finish requirements with Ra values.
Include a note on deburring and edge conditions.
Common Challenges and Solutions
| Challenge | Solution |
|---|---|
| Burr formation | Use sharp dies, proper clearance (e.g., 5-10% of material thickness), and deburring processes. |
| Springback | Overbend or coin the material; use high-strength punches. |
| Dimensional drift over run | Implement SPC, regularly maintain tooling, and stabilize press conditions. |
| Surface scratches | Improve lubrication, polish dies, and use protective films. |
| Inconsistent hole placement | Use pilot holes, ensure die alignment, and control strip feed. |
Conclusion
Precision stamping tolerances are not just numbers on a drawing; they are a critical language that defines quality, functionality, and cost. By understanding the types of tolerances, influencing factors, and best practices, you can work effectively with your stamping partner to produce parts that meet exact specifications. Remember to balance tight tolerances with manufacturability to achieve optimal results. For expert metal stamping services that deliver consistent precision, contact our team today.
