Quick-Change Collet Systems: Setup Time Savings
Short answer: A quick-change collet system replaces the threaded nut-and-wrench routine with a quarter-turn bayonet or lever-action clamping head, so a collet swap that used to take 3–8 minutes typically drops to 20–60 seconds. On a lathe running 6–10 changeovers per shift, that is roughly 1.5–4 hours of spindle time recovered daily. The collet itself still controls accuracy — a quality ER or 5C collet holds 0.005–0.015 mm TIR — but the holder decides how fast you get back to cutting. BQUQ manufactures matching collets and chucks in one ISO9001 Dongguan factory and quotes custom work in 12 working hours.
Why does collet changeover time matter more than cutting time?
Most machine shops measure productivity in spindle hours. That is the wrong denominator. On a lathe or mill running high-mix, low-volume work, the machine is often idle longer than it is cutting. Setup, teardown, and tool change dominate the day.
A conventional collet chuck is a simple, reliable device: a body with an internal taper, a collet, and a nut that compresses the collet as you thread it on. It works beautifully. It is also slow. The operator must:
1. Loosen the nut with a spanner or hook wrench.
2. Back the nut off far enough to release the collet taper.
3. Pull the old collet out.
4. Wipe the taper and the new collet.
5. Insert the new collet, align it, and start the nut by hand.
6. Thread the nut down and torque it.
7. Re-zero or at least re-verify the part.
Steps 1–6 are pure non-value-added time. Depending on thread pitch, chuck size, and how tight the previous operator torqued the nut, that sequence runs 3–8 minutes. Do it eight times a shift and you have burned most of an hour on nothing.
Quick-change systems attack this directly. The collet is retained in a carrier, or the nut is replaced by a bayonet ring, a lever, or a drawbar-actuated clamp. The operator releases, swaps, and re-locks with a fraction of a turn. The taper still does the centering work — the mechanism only changes how the collet is compressed.
The real cost of a slow changeover
| Changeover time | Changes per shift | Lost spindle time per shift | Lost spindle hours per month (2 shifts, 22 days) |
|---|---|---|---|
| 6 min | 8 | 48 min | ~35 hours |
| 3 min | 8 | 24 min | ~18 hours |
| 45 sec | 8 | 6 min | ~4.4 hours |
| 30 sec | 8 | 4 min | ~2.9 hours |
Figures are indicative and scale with your actual mix. The point is structural: at a 6-minute changeover, you lose more than four full working days of spindle time every month. At 45 seconds, you lose about half a day.
What are the main quick-change collet system types?
There is no single design. The right choice depends on whether you are on a lathe, a mill, or a Swiss-type machine, and whether the collet is changed by hand or by the machine.
Bayonet and quarter-turn nut systems
The most common retrofit. A bayonet ring replaces the standard nut. Push, twist a quarter turn, and the collet is released. Push the new collet in, twist back, done. These suit ER-style tapers and are widely used on tool holder collet chucks for milling and drilling.
Trade-off: bayonet rings are usually rated for slightly lower clamping torque than a fully threaded nut, so they suit light-to-medium cutting. For heavy roughing, verify the manufacturer's torque rating before committing.
Lever and cam-lock chucks
A lever or cam compresses the collet axially. One motion opens, one closes. These are common on manual lathes and on 5C-style spindles where the collet is drawn back into the spindle taper. Changeover is often under 15 seconds.
Drawbar and pneumatic actuation
On CNC lathes, the collet is often actuated by a drawbar driven by a hydraulic or pneumatic cylinder. The operator never touches a wrench. A power chuck or Swiss-type collet chuck opens and closes on an M-code, and the collet can be swapped in the open position with a simple pull.
This is the fastest option because the clamping force is consistent and machine-controlled. It also removes operator-to-operator torque variation, which is a hidden source of runout drift.
Carrier and cassette systems
Some systems mount the collet in a pre-set cassette. The cassette is swapped as a unit, so the collet can be loaded and gauged offline while the machine keeps cutting. This is the closest thing to zero-downtime changeover and is popular in high-mix production cells.
How much time can you actually save?
Let's put real numbers against a typical job shop scenario.
Assume a CNC lathe running small turned parts, 8 changeovers per shift, 2 shifts per day, 22 working days per month. The collet is an ER32 or 5C style, and the operator is competent but working with a standard threaded nut.
| Task | Standard nut | Quick-change system |
|---|---|---|
| Release and remove collet | 90–180 s | 5–15 s |
| Clean and inspect taper | 20–40 s | 20–40 s |
| Insert and seat new collet | 30–60 s | 5–10 s |
| Tighten / lock | 60–120 s | 5–15 s |
| Verify first part | 60–120 s | 30–60 s |
| Total per change | 4.5–8.5 min | 1–2.3 min |
The verification step is included because it is honest — you should always check the first part after a changeover regardless of how fast the holder is. Even so, the saving is roughly 3.5–6 minutes per change.
At 8 changes per shift, that is 28–48 minutes per shift, or 20–35 hours per month across two shifts. If your shop rate is anything meaningful, the payback on a quick-change chuck is usually measured in weeks, not years.
Do quick-change systems compromise accuracy?
This is the most common objection, and it deserves a straight answer.
A collet's accuracy comes from the taper fit between the collet body and the chuck, and from the collet's own bore concentricity. A quick-change mechanism changes how the collet is pushed into the taper — it does not change the taper itself.
In practice, a well-made quick-change system holds the same TIR as a standard nut system, provided:
- The collet is a precision-ground part, not a stamped or as-cast item.
- The chuck taper is clean and undamaged.
- The collet is seated fully before clamping.
- Clamping torque is within the collet's rated range.
Where quick-change systems can lose ground is repeatability of clamping force. A hand-tightened bayonet ring depends on the operator. A pneumatic drawbar does not. If your process is sensitive to sub-0.01 mm variation, machine-actuated clamping is the safer choice.
For a deeper comparison of workholding accuracy, see our article on collet versus 3-jaw chuck tolerance.
Accuracy comparison at a glance
| System | Typical TIR | Changeover | Best for |
|---|---|---|---|
| Standard threaded nut | 0.005–0.015 mm | 4–8 min | Low-mix, long runs |
| Bayonet quick-change | 0.005–0.015 mm | 20–60 s | High-mix milling |
| Lever / cam-lock | 0.005–0.020 mm | 10–30 s | Manual lathes, 5C work |
| Pneumatic drawbar | 0.003–0.010 mm | 5–20 s | CNC lathes, production |
| Cassette / carrier | 0.005–0.015 mm | 10–30 s | High-mix cells |
Values are typical and depend on collet grade, chuck condition, and spindle quality.
Where does the collet itself still decide the outcome?
A fast holder with a poor collet is a fast way to scrap parts. The collet does the gripping, the centering, and — in slotted designs — the elastic deformation that lets it close uniformly.
Three design details matter most:
Slot geometry. The number, width, and length of the slots control how evenly the collet closes. Poor slot design creates lobed clamping and uneven wear. We cover this in collet slot design.
Heat treatment. A quenched and tempered collet holds its spring and its bore size far longer than a soft one. Cheap collets deform permanently after a few hundred cycles and start losing grip.
Bore finish. Mirror-polished bores reduce galling on stainless and aluminum and improve grip on hardened shanks.
For shops running families of similar parts, pairing a quick-change holder with pre-set gang tooling takes the concept further: multiple collets stay loaded in the machine, and the changeover becomes a tool offset call rather than a physical swap.
What should you check before buying a quick-change system?
Run through this list before you commit budget.
- Spindle interface. Does the chuck match your spindle nose (A2, D1, 5C, R8, or a proprietary interface)? Adapters exist but add stack-up error.
- Collet series. ER, 5C, TG, DA, and Swiss-style collets are not interchangeable. Confirm the holder accepts the collets you already stock.
- Clamping torque. Ask for the rated torque and compare it to your heaviest cut. Bayonet systems are often lighter-duty than threaded nuts.
- Repeatability spec. Request a TIR figure and the conditions it was measured under.
- Actuation. Manual, pneumatic, or hydraulic? Pneumatic needs air and a control signal; hydraulic needs a power unit.
- Serviceability. Can you replace the taper sleeve or the bayonet ring, or is the whole chuck a consumable?
- Collet supply. A fast holder is useless if you cannot get collets in the sizes and grades you need.
That last point is where source-direct supply matters. BQUQ manufactures auto-lathe collets and matching chucks in the same Dongguan facility, so holder and collet are made to the same taper spec rather than being matched across two supply chains.
How BQUQ supports quick-change collet programs

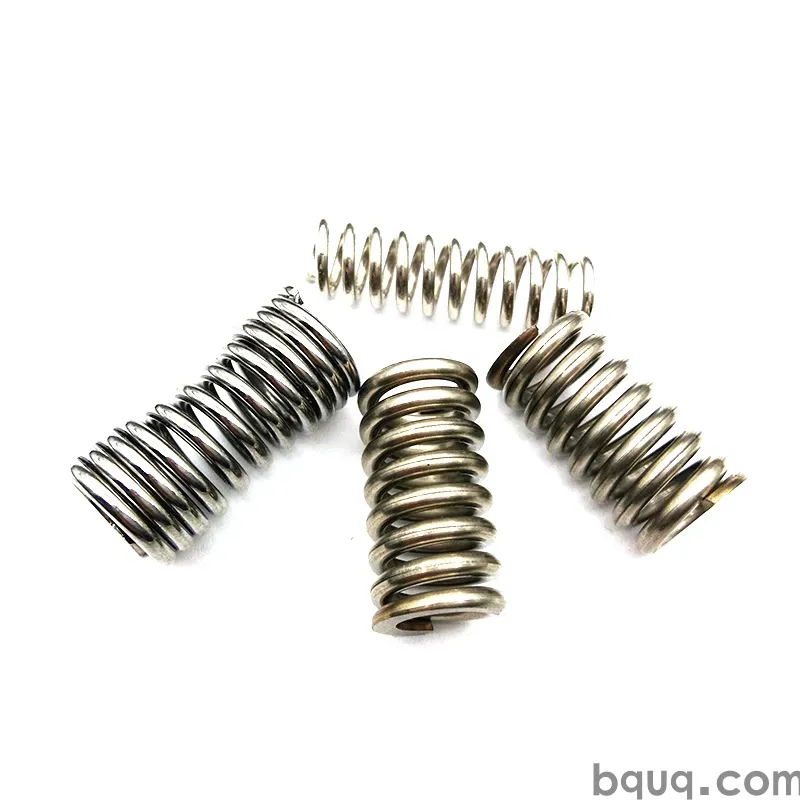

BQUQ (Dongguan) runs four production lines in one ISO9001 factory: CNC machining to ±0.005 mm, metal stamping, custom springs, and heat sink production. For collet work, that means we can machine the chuck body, grind the collet taper, heat treat, and finish in-house.
What that gives a buyer:
- One taper spec. Chuck and collet made to the same drawing, not two vendors' interpretations of it.
- Custom bores. Round, hex, square, or triangle bores for special shanks.
- Flexible MOQ. Prototype quantities through production volumes, without a tooling-amortization cliff.
- 12 working hours for quotes. Send a drawing or a sample and get a price back the same working day in most cases.
- ISO9001 process control. Documented inspection, not a verbal assurance.
If your changeover problem is really a collet-fit problem — the collet rocks, sticks, or will not release cleanly — the fix is often a matched holder-and-collet set rather than a new machine feature.
Frequently Asked Questions
Q: How much setup time does a quick-change collet system actually save?
A: Typically 3.5–6 minutes per changeover compared with a standard threaded nut. A manual swap that takes 4.5–8.5 minutes usually drops to 1–2.3 minutes including first-part verification. At eight changes per shift across two shifts, that is roughly 20–35 spindle hours recovered per month. Actual savings depend on your mix, chuck size, and how disciplined your operators are about torque.
Q: Does a quick-change collet chuck reduce machining accuracy?
A: Not inherently. Accuracy comes from the taper fit and the collet's bore concentricity, and a quick-change mechanism only alters how the collet is compressed. Well-made systems hold the same 0.005–0.015 mm TIR as threaded nuts. The risk is clamping-force variation with hand-actuated designs, so machine-actuated drawbars are preferable when your tolerance is tighter than 0.01 mm.
Q: Can I retrofit a quick-change system to an existing CNC lathe?
A: Often yes. Bayonet rings and lever chucks are available for common spindle interfaces, and drawbar-actuated collet chucks can replace a standard chuck on many CNC lathes. Check the spindle nose type, the maximum drawbar force your machine can deliver, and whether the retrofit adds stack-up that affects your reach. A mismatched adapter can cost more accuracy than the changeover saves.
Q: Which collet series is best for quick-change workholding?
A: It depends on your spindle and workload. ER collets dominate milling because they cover a wide clamping range per size. 5C collets suit lathes and offer fast drawbar actuation. Swiss-type collets are required on sliding-head machines because the guide bushing and collet must match. Choose the series your machine and existing tooling already use, then optimize the holder.
Q: What is a realistic payback period for a quick-change collet system?
A: For a shop running eight or more changeovers per shift, payback is usually measured in weeks. The calculation is simple: multiply minutes saved per change by changes per month, convert to spindle hours, and multiply by your shop rate. Even a modest 4-minute saving at eight changes per shift recovers over 20 hours monthly, which typically exceeds the cost of a mid-range quick-change chuck within one or two months.
