Microchannel Cooling: High Heat Flux Solutions
Short answer: Microchannel cooling pushes heat transfer into the 100–1,000 W/cm² range by forcing coolant through channels roughly 0.1–1.0 mm wide, where the surface-area-to-volume ratio is 10–50× that of a conventional cold plate. For a 300 W IGBT or a 500 W GPU die, that means junction-to-coolant resistance in the 0.02–0.08 °C/W range using copper or aluminum microchannel plates machined to ±0.005 mm. BQUQ produces these plates on CNC lines in Dongguan, quotes in 12 working hours, and runs flexible MOQ for prototype-to-production programs.
What Counts as "High Heat Flux" in Electronics Cooling?
Heat flux is power divided by area, and it is the number that decides whether air cooling is still viable. A 5 W LED spread over 20 cm² is a trivial 0.25 W/cm². The same 5 W concentrated on a 1 mm² laser diode facet is 500 W/cm² — a different engineering universe.
Practically, the industry bands look like this:
| Heat flux band | Typical sources | Cooling approach |
|---|---|---|
| < 1 W/cm² | Enclosures, power supplies, LED panels | Natural convection, extruded profiles |
| 1–10 W/cm² | CPU/GPU IHS, motor drives, telecom rectifiers | Forced air, heat pipes, vapor chambers |
| 10–100 W/cm² | High-power IGBT modules, server CPUs, EV inverters | Liquid cold plates, bonded-fin, skived fin |
| 100–1,000 W/cm² | RF amplifiers, GaN devices, laser bars, direct-die GPU | Microchannel, jet impingement, two-phase |
| > 1,000 W/cm² | Laser diode arrays, radar T/R modules | Microchannel + phase change, diamond spreaders |
The reason microchannels matter is geometric. Thermal resistance to a fluid scales with the convective area available and the distance heat must travel through the solid. Shrinking channel width from 3 mm to 0.3 mm multiplies wetted area by roughly an order of magnitude in the same footprint, while simultaneously reducing the conduction path from the base to the fin surface. That combination is what breaks the 100 W/cm² barrier.
How Does Microchannel Geometry Actually Work?
A microchannel heat sink is a set of parallel or manifolded channels cut, skived, etched, or brazed into a metal block. Coolant enters through an inlet manifold, absorbs heat from the channel walls, and exits through an outlet manifold. The governing parameters are channel width (Wc), fin or wall thickness (Wf), channel depth (H), and the aspect ratio H/Wc.
Channel dimensions and aspect ratio
| Parameter | Conventional cold plate | Microchannel | Deep microchannel |
|---|---|---|---|
| Channel width | 2–5 mm | 0.3–1.0 mm | 0.1–0.3 mm |
| Wall thickness | 1–3 mm | 0.2–0.8 mm | 0.1–0.3 mm |
| Depth | 3–8 mm | 1–3 mm | 2–5 mm |
| Aspect ratio (H/Wc) | 1–2 | 2–5 | 8–20 |
| Surface-area density | 3–10 cm²/cm³ | 15–30 cm²/cm³ | 30–60 cm²/cm³ |
| Typical thermal resistance | 0.10–0.25 °C/W | 0.04–0.10 °C/W | 0.02–0.05 °C/W |
Those resistance figures are indicative for a well-designed plate at 1–2 L/min flow with water or a 50/50 glycol mix — they are not a guarantee, because the interface material, TIM bond line, and mounting pressure usually dominate the total stack.
Why aspect ratio beats raw channel count
Engineers new to microchannels often try to maximize channel count. That is a mistake. Very narrow, shallow channels raise pressure drop quadratically with flow velocity and can push the pump outside its operating curve. A 0.5 mm wide × 3 mm deep channel (aspect ratio 6) typically delivers better heat transfer per unit of pumping power than a 0.2 mm × 0.5 mm channel (aspect ratio 2.5) at the same flow rate, because the deep channel keeps the bulk fluid cooler near the base and keeps velocity moderate.
The practical rule: raise depth before you narrow width, and only narrow width once depth is constrained by the plate thickness budget.
Which Manufacturing Process Should You Choose?
Microchannel plates are made by several routes, and the right one depends on channel width, material, volume, and whether the channels are open or closed.
Skiving
Skiving uses a blade to plastically deform and lift a thin layer of metal into a standing fin, leaving a channel between fins. It is the dominant process for copper microchannel and skived-fin heat sinks because it produces fin thickness down to roughly 0.15 mm with no thermal interface between fin and base — the fin is continuous with the base metal. Our skiving process guide covers blade geometry and fin-tip control in detail.
CNC milling
CNC milling cuts channels directly with micro end mills. It is slower per part than skiving but far more flexible: you can produce manifolds, mounting bosses, O-ring grooves, and channel arrays in a single setup. This is the standard route for prototype microchannel cold plates and for low-volume, high-mix production. BQUQ machines these to ±0.005 mm on copper and aluminum, which matters because a 0.05 mm channel-width deviation is a 10–15% change in local flow resistance across a 0.5 mm channel.
Brazing and bonding
For closed-channel designs or mixed-material stacks (copper channels with aluminum housing), vacuum brazing or diffusion bonding joins a channeled plate to a cover plate. Bond quality is the limiting factor — a partial bond line adds contact resistance exactly where you least want it. See our notes on soldering and brazing heat sinks.
Comparison
| Process | Min. channel width | Tooling cost | Best volume | Material |
|---|---|---|---|---|
| Skiving | ~0.15 mm | Moderate | 1k–100k | Copper, aluminum |
| CNC milling | ~0.3 mm | Low | 1–5k | Copper, aluminum |
| Vacuum brazing | ~0.5 mm | High | 5k+ | Copper, aluminum, stainless |
| Diffusion bonding | ~0.2 mm | High | 10k+ | Copper, aluminum |
| Etching | ~0.05 mm | High | 10k+ | Copper, stainless |
For most industrial and power-electronics programs, skiving or CNC milling covers the requirement. Etched and diffusion-bonded plates are reserved for semiconductor-level flux densities where the channel is measured in tens of microns.
Material Choice: Copper vs Aluminum Microchannels
Copper wins on thermal conductivity (roughly 385 W/m·K vs 200–220 W/m·K for aluminum alloys) and on corrosion compatibility with water-glycol loops. Aluminum wins on weight, cost, and machinability, but it is more sensitive to galvanic corrosion and pH drift in untreated coolant.
| Property | C11000 copper | 6061-T6 aluminum |
|---|---|---|
| Thermal conductivity | ~385 W/m·K | ~167 W/m·K |
| Density | 8.96 g/cm³ | 2.70 g/cm³ |
| Relative cost (material) | Higher | Lower |
| Coolant compatibility | Good with inhibited glycol | Requires inhibitor package |
| Machinability | Moderate (gummy) | Excellent |
| Typical use | High-flux, direct-die, RF | Weight-sensitive, cost-driven |
A common compromise is a copper microchannel plate bonded to an aluminum housing, or a copper base with aluminum fins. If you are weighing that trade-off, our thermal interface selection guide walks through bond-line thickness and material pairing.
One caution: never mix bare copper and bare aluminum in a wet loop without an inhibitor. The galvanic couple will pit the aluminum within months.
What About Pressure Drop and Pumping Power?
Microchannels trade thermal performance for hydraulic cost. Halving channel width roughly doubles velocity at constant flow, which quadruples pressure drop in the laminar-to-transition regime. A plate that needs 5 kPa at 2 mm channels may need 40–80 kPa at 0.4 mm channels for the same flow rate.
Three design levers keep this manageable:
1. Manifold design. A tapered or bifurcating inlet manifold distributes flow evenly and avoids the stagnation zone at the far end of the plate. Poor manifolds can cost 20–30% of the achievable thermal performance.
2. Flow rate optimization. There is a point where added flow no longer reduces junction temperature meaningfully because the TIM and die resistance dominate. Find that knee before specifying a bigger pump.
3. Two-phase operation. Boiling inside microchannels removes far more heat per unit flow, but it introduces flow instability and dry-out risk. It is a specialist design, not a default.
Where Microchannel Cooling Is Used
- Power electronics: IGBT and SiC modules in EV traction inverters, wind converters, and industrial drives.
- Data center and HPC: Direct-to-chip liquid cooling for high-TDP processors, increasingly with microchannel cold plates bonded directly to the die or IHS.
- RF and radar: GaN power amplifiers and T/R modules where flux exceeds 200 W/cm².
- Laser systems: Diode bars and fiber laser pump modules.
- Medical imaging: CT and MRI gradient amplifiers.
In each case the microchannel plate is one layer of a stack: die → TIM → plate → coolant. Improving the plate while leaving a 0.15 mm bond line of mediocre TIM in place is a wasted effort. Our vapor chamber design guide covers the same stack logic for two-phase spreaders.
Design Checklist Before You Request a Quote
1. Define the heat load, source footprint, and allowable junction temperature.
2. Set the coolant: type, inlet temperature, flow rate, and maximum pressure drop.
3. Choose material and channel geometry (width, wall, depth, aspect ratio).
4. Specify the interface: TIM type, bond-line target, mounting method and pressure.
5. Define leak-test and flatness requirements — microchannel plates need flatness typically within 0.05 mm across the sealing face.
6. Confirm the manifold and port configuration (barb, G1/4, O-ring boss).

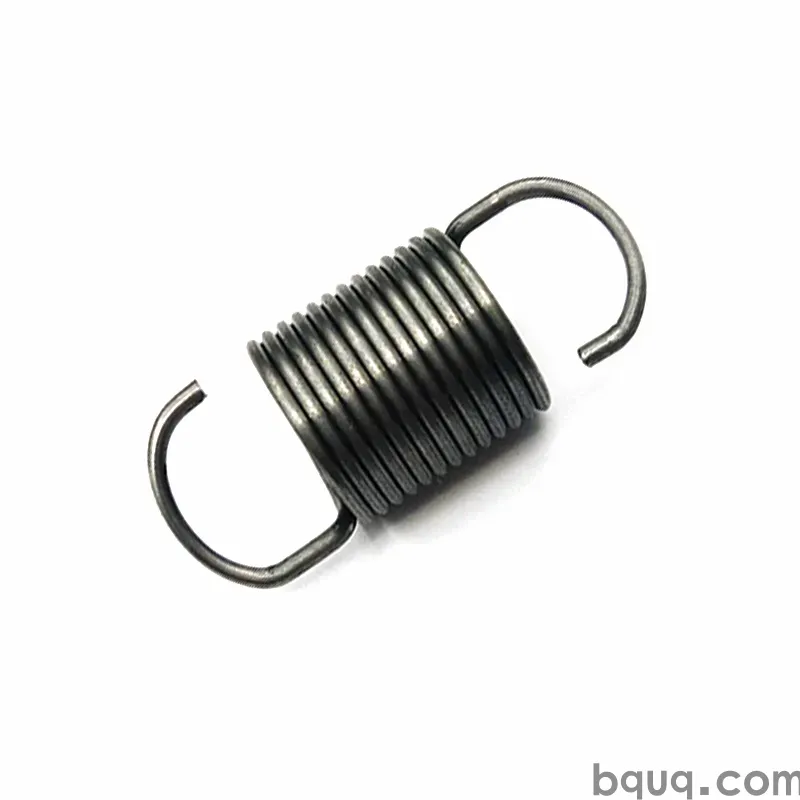

BQUQ runs four production lines in one Dongguan factory covering CNC machining, metal stamping, custom springs, and heat sink production. That means a microchannel cold plate, its mounting bracket, and its spring-loaded retention hardware can be quoted and produced as one package rather than three. Flexible MOQ applies, and quotes go out within 12 working hours.
Frequently Asked Questions
Q: What heat flux can a microchannel heat sink handle?
A: With single-phase water or glycol, a well-designed copper microchannel plate typically handles 100–500 W/cm² at the die surface, with thermal resistance in the 0.02–0.08 °C/W range depending on channel geometry and flow. Two-phase designs can push beyond 1,000 W/cm² but add flow-instability risk. These are indicative ranges — the total stack resistance, including TIM and mounting, usually sets the real limit.
Q: How small can the channels be machined?
A: CNC milling at BQUQ holds channel widths around 0.3 mm and tolerances of ±0.005 mm on copper and aluminum. Skiving reaches roughly 0.15 mm fin thickness. Below that, etching or diffusion bonding is required. Narrower is not automatically better: pressure drop rises sharply, and the pump curve often becomes the binding constraint.
Q: Is copper always better than aluminum for microchannels?
A: Copper has roughly 1.8× the thermal conductivity and better water-loop compatibility, so it wins on pure thermal performance. Aluminum is lighter and cheaper and is often the right choice for weight-sensitive or cost-driven programs, provided the coolant has a proper inhibitor package. Never run bare copper and bare aluminum in the same untreated wet loop.
Q: What coolant should I specify?
A: Deionized water with an inhibitor package for copper systems, or a 25–50% propylene or ethylene glycol mix where freeze protection or higher boiling margin is needed. Glycol reduces heat capacity and raises viscosity, so expect a modest thermal penalty. Always confirm material compatibility with the coolant vendor before committing to a production design.
Q: How do I get a microchannel cold plate quoted?
A: Send the heat load, source footprint, allowable junction temperature, coolant type and flow rate, and maximum pressure drop, plus a 2D drawing or 3D model. BQUQ reviews the design, flags manufacturability issues, and returns a quote within 12 working hours. Prototype and low-volume quantities are welcome under flexible MOQ.
