Spring Standards: ISO 10243, DIN 2095 and What Applies
Short answer: ISO 10243 covers color-coded rectangular-wire die springs for press tooling, while DIN 2095 covers cold-coiled round-wire helical compression springs with defined quality grades and tolerance tables. Neither standard is a universal requirement — they apply when your drawing, your tooling catalogue, or your customer's specification says so. If a spring is not a catalogue die spring and not a DIN 2095 stock item, the governing document is your own drawing: wire diameter, free length, solid height, rate, and end configuration. BQUQ manufactures to drawing tolerances of ±0.005 mm on CNC-machined features and quotes custom springs within 12 working hours.
What Is ISO 10243?
ISO 10243 is the international standard for rectangular-section compression springs used in press tools and die sets. It is the direct descendant of the older German DIN 9834 / ISO 10243 lineage, and it is the reason die springs come in colours.
The standard defines:
- Wire cross-section — rectangular (often called "flat wire" or "oval wire" in shop talk), which packs more material into a given bore than round wire and therefore delivers higher force per unit of deflection.
- Hole and rod diameters — a fixed matrix of bore sizes and matching mandrel diameters so a spring drops into a standard bored pocket without custom fitting.
- Free length and hole depth — standard lengths that correspond to standard pocket depths.
- Load classes — light, medium, heavy, and extra heavy duty, each with a maximum allowable deflection as a percentage of free length.
- Colour coding — the paint colour on the end coil identifies the load class. This is a convenience convention, not a performance guarantee in itself.
The colour code, and why it matters on the shop floor
The colour system exists so a toolmaker can identify a spring by eye in a press without measuring it. Typical industry colour assignments run green for light duty, blue for medium, red for heavy, and yellow or brown for extra heavy, but exact colour-to-class mapping varies between manufacturers. Never specify a die spring by colour alone in a purchase order — always state the ISO 10243 size code, free length, and load class in writing.
What ISO 10243 does not cover
ISO 10243 does not cover round-wire springs, extension springs, torsion springs, or springs for non-tooling applications. It also does not set material chemistry. A die spring can be made from chrome-silicon, chrome-vanadium, or a proprietary oil-tempered grade and still conform to the dimensional standard. If your application is sensitive to fatigue life at high cycle counts, material and heat treatment matter more than the dimensional standard — see our notes on chrome silicon springs for how alloy choice changes fatigue performance.
What Is DIN 2095?

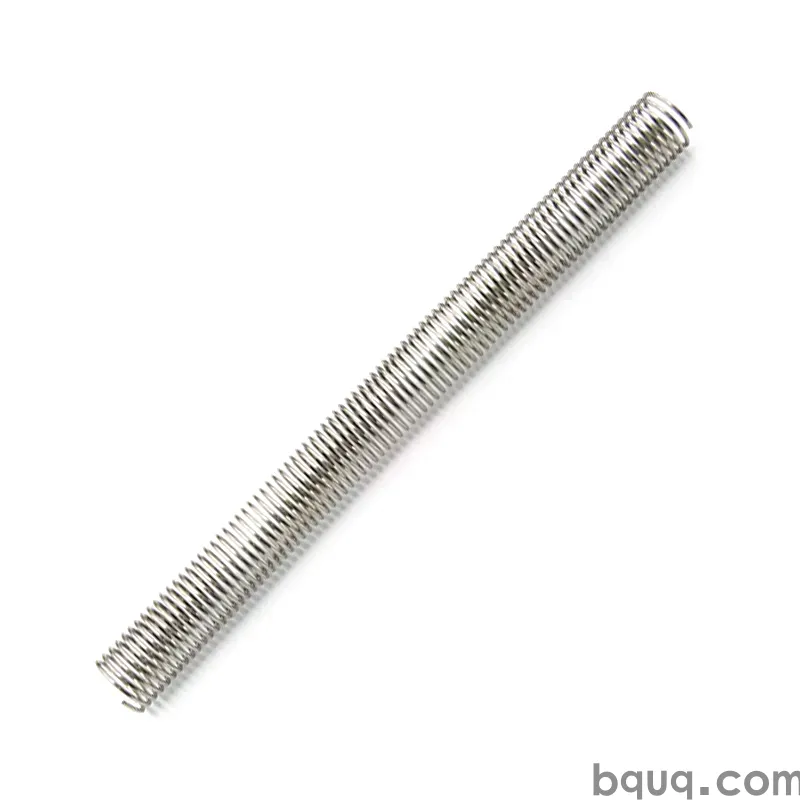

DIN 2095 is the German standard for cold-coiled cylindrical helical compression springs made from round wire. Where ISO 10243 is about tooling hardware, DIN 2095 is about the general-purpose compression spring.
It specifies:
| Element | What DIN 2095 defines |
|---|---|
| Wire diameter range | Round wire, cold-coiled, in a defined diameter series |
| Coiling direction | Right-hand as standard unless otherwise specified |
| End types | Closed, closed and ground, open, open and ground |
| Quality grades | Grades based on tolerance tightness for wire diameter, outside diameter, free length, and perpendicularity |
| Tolerance tables | Permissible deviation as a function of spring index and quality grade |
| Material assumptions | Standard spring steels with defined modulus values used in the calculation formulae |
Quality grades explained
DIN 2095's most useful contribution to a buyer's drawing is the quality grade concept. A tighter grade costs more because it demands tighter coiling control, more consistent wire, and often a grinding operation on the ends. The trade is straightforward: if your spring sits in a bore with generous clearance and the load is not critical, a looser grade is fine. If the spring locates a precision mechanism or works in a stack where cumulative length matters, specify the tighter grade.
This is where spring length tolerance becomes a purchasing decision rather than a manufacturing detail — the tolerance you write on the drawing directly sets the process route and the price.
The limits of DIN 2095
DIN 2095 assumes cold-coiled round wire with a reasonably conventional index. It does not cover hot-coiled large springs, rectangular wire, or springs with unusual end configurations. It also does not guarantee a load at a given height — it guarantees dimensions and, by extension, the dimensional inputs to a load calculation. Load verification is a separate test, which is why spring load testing belongs in your incoming inspection plan regardless of which standard you cite.
ISO 10243 vs DIN 2095: Side-by-Side
| Attribute | ISO 10243 | DIN 2095 |
|---|---|---|
| Product type | Rectangular-wire die springs | Round-wire helical compression springs |
| Primary use | Press tools, die sets, injection moulds | General machinery, mechanisms, assemblies |
| Wire section | Rectangular / flat | Round |
| Identification | Size code plus colour-coded load class | Drawing dimensions plus quality grade |
| Deflection guidance | Max deflection as % of free length by load class | Calculated from stress and index |
| Material specified? | No | Assumes standard spring steel grades |
| Typical buyer | Toolroom, stamping die designer | Machine designer, OEM component engineer |
| Catalogue availability | Widely stocked in standard sizes | Stocked in common sizes, less universal |
The practical takeaway: these two standards do not compete. A stamping die may contain ISO 10243 die springs for the stripper plate and DIN 2095 compression springs for a small return mechanism, and both are correct in their place.
Which Standard Applies to My Spring?
Ask three questions in order.
1. Is it a die spring or a general compression spring?
If the spring sits in a bored pocket in a press tool and pushes a stripper plate, it is a die spring. ISO 10243 is the relevant framework, and you should buy from a catalogue size rather than design from scratch — the whole point of the standard is interchangeability.
If the spring is a general-purpose compression spring in a mechanism, DIN 2095's tolerance framework is the natural reference, even if you are not legally required to cite it.
2. Does my customer's drawing name a standard?
If the drawing says "to DIN 2095, grade 2," that is the contract. Manufacture and inspect to it. If the drawing is silent, do not assume a standard applies — a silent drawing means the drawing dimensions govern, and any tolerance not stated is a negotiation.
3. Is the spring actually outside both standards?
Many springs are. Extension springs, torsion springs, conical springs, variable-pitch springs, and anything with a custom end form fall outside both documents. For these, the drawing plus a defined inspection method is the only real specification. Our torsion springs and extension custom springs are typically built this way: fully to drawing, with load and dimensional verification agreed up front.
What the Standards Do Not Tell You
Standards define geometry and tolerance. They do not define the things that most often cause field failures.
Material and heat treatment
Two springs can meet the same dimensional standard and have wildly different fatigue lives depending on alloy, wire quality, residual stress, and stress-relief treatment. Standards are silent on this because they are dimensional documents.
Surface condition and corrosion protection
Shot peening, plating, and coating all change fatigue behaviour and corrosion resistance. None of it is in the dimensional standard. If your spring operates outdoors or in a wash-down environment, specify the finish explicitly — our overview of spring plating and powder coat covers the trade-offs.
Dynamic behaviour
Surge, resonance, and natural frequency are design concerns, not standard concerns. A spring that passes every dimensional check can still fail in a high-speed application because it was never checked for spring resonance and surge.
End-of-life behaviour
Standards do not tell you when a spring will set, sag, or yield. That depends on stress at installed height relative to the material's allowable stress. If you are running a spring near its limit, review spring overload and yield before you commit to a design.
How BQUQ Handles Spring Specifications
BQUQ (Dongguan) runs custom spring production alongside CNC machining, metal stamping, and heat sink manufacturing in one ISO9001 factory, across four production lines. That co-location matters for spring buyers because it means tooling, fixtures, and end-form features can be machined in-house rather than outsourced.
What we ask for on a spring RFQ:
| Information | Why we need it |
|---|---|
| Wire diameter and material | Sets the coiling process and stress allowables |
| Free length and solid height | Defines the coiling window and spring index |
| Outside or inside diameter | Determines mandrel and bore fit |
| Load at one or two heights | Lets us verify rate and set the inspection point |
| End configuration | Closed, ground, open, or custom |
| Operating environment | Drives finish and material selection |
| Annual volume and MOQ expectation | Sets tooling and process economics |
If you can supply dimensions and a load point, we can quote within 12 working hours. If you only have an envelope and a force requirement, we can propose a design — flexible MOQ applies, so a prototype run and a production run are both viable starting points.
For standard round-wire compression springs, see our compression springs capability page. For anything with a custom end form or non-standard geometry, send the drawing directly.
Frequently Asked Questions
Q: Is ISO 10243 mandatory for die springs?
A: No. ISO 10243 is a dimensional and load-class standard, not a legal requirement. It becomes mandatory only when your drawing, your customer's specification, or your tooling catalogue invokes it. In practice, most press tool designers use it voluntarily because it guarantees interchangeability — a replacement spring from any conforming supplier will fit the same pocket and deliver the same load class.
Q: Can a spring comply with both ISO 10243 and DIN 2095?
A: Not meaningfully. ISO 10243 is written around rectangular wire, DIN 2095 around round wire. A single spring cannot have both cross-sections, so the two standards describe different product families. A die assembly can contain springs conforming to each standard in different locations, but no individual spring conforms to both simultaneously.
Q: What does DIN 2095 quality grade actually change?
A: It changes the permissible deviation on wire diameter, outside diameter, free length, and perpendicularity. A tighter grade means tighter coiling control, more consistent incoming wire, and often ground ends. The functional result is better dimensional repeatability in a stack or bore. Choose the grade based on how much cumulative variation your assembly can absorb.
Q: Do I need a standard if my spring is fully custom?
A: No, and citing one can create confusion. For a custom spring, the drawing is the specification. State every dimension, the load at the heights you care about, the end configuration, the material, the finish, and the inspection method. Add a note that unspecified tolerances follow a named default — that single line prevents most disputes.
Q: How do I verify a spring meets the standard I specified?
A: Measure the dimensions the standard controls and test the load at the specified heights. For die springs, confirm the size code, free length, and load class rather than trusting the paint colour. For DIN 2095 springs, check the quality-grade dimensions. Load testing at one or two heights catches most non-conformances that dimensional checks alone would miss.
