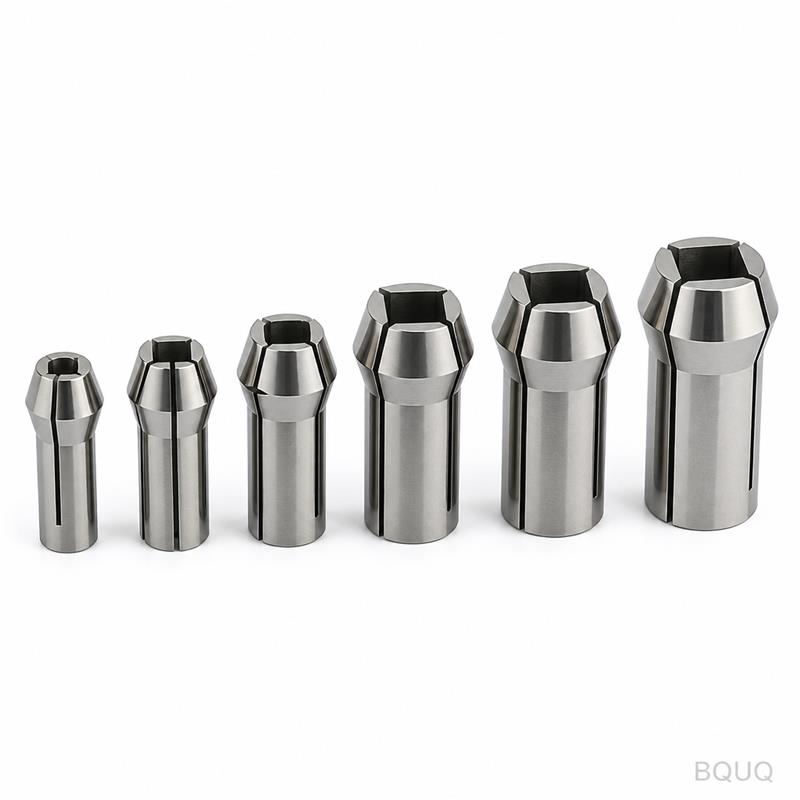

Your drawing defines the part. Our machines do the rest. We machine this auto lathe square bore collet set to your exact print, not to a stock catalog. Every collet is verified for bore geometry, concentricity, and hardness before it leaves our Dongguan floor.
At a glance: Tolerance ±0.005 mm on bore and taper. Lead time 10-15 working days for custom sizes. No MOQ—order one piece or one hundred. Material options include 65Mn, GCr15, and 20CrMnTi.
| Parameter | Value |
|---|---|
| Size range | 15 mm to 52 mm bore diameter |
| Bore shape | Square, per customer drawing |
| Material | 65Mn spring steel, GCr15 bearing steel, 20CrMnTi case-hardened steel |
| Hardness | 45-55 HRC (core), 58-62 HRC (case, if specified) |
| Tolerance | ±0.005 mm on bore, ±0.01 mm on taper angle |
| Concentricity | ≤0.008 mm TIR |
| Surface finish | Ra 0.4 μm on bore, Ra 0.8 μm on outer taper |
| Process | CNC turning, internal grinding, wire-cut square bore, heat treatment |
| Inspection | 100% dimensional check, CMM report per batch |
| Batch size | 1 to 5,000 pieces |
| Lead time | 10-15 days custom, 5 days for standard sizes |
| Certification | Material certs, heat treatment curves, inspection report |
1. Batch-traceable quality, not random sampling. Each collet gets a unique batch number. We store raw material heat numbers, heat treatment furnace records, and final inspection data for 24 months. If a problem appears on your line, we trace it to the exact melt and process step. No guesswork.
2. Inspection report per batch, free. Every order ships with a dimensional report. We measure bore width, square corner radius, taper angle, and hardness on each piece. You receive the data before the parts arrive. No surprises at incoming QC.
3. One factory for CNC, stamping, springs, and heat sinks. Your collet set might need a spring retainer, a stamped washer, or a heat sink for the spindle drive. We make all of them under one roof. You get one purchase order, one shipping date, and one quality standard. No third-party coordination headaches.
Square bore collets are not for round bar. They grip square, hex, or profiled stock on automatic lathes and CNC turning centers. Typical applications:
We also make the matching collet chuck body if your machine needs a complete assembly. Send us the spindle nose drawing and we match the taper.
Looking for a different part? We also machine Custom CNC Collet Chuck Auto Lathe 46 Type Round Bar Stock in the same Dongguan factory.
Q: Is there really no MOQ? A: Correct. We machine one piece for prototype validation. Production pricing starts at 10 pieces. Our CNC setup cost is fixed, so small batches are economical. For a 15 mm square bore collet, single-piece price is about 1.5x the 100-piece price.
Q: How do you guarantee tolerance and quality? A: We grind the taper and bore on the same setup to hold concentricity. Each collet is measured on a CMM with a resolution of 0.001 mm. The inspection report lists actual values for every critical dimension. If any value is out of spec, the part is scrapped, not shipped.
Q: What is your lead time for a custom set? A: Standard sizes (15, 20, 25, 32, 42, 52 mm) ship in 5 days. Custom bore shapes or special materials take 10-15 days. Heat treatment adds 3 days if we need to hit a specific hardness range. We quote exact dates when you send the drawing.
Q: Do you provide material certificates? A: Yes. We supply mill certificates for the raw steel, heat treatment curves, and hardness test results. For GCr15, we include the spheroidizing anneal report. For 20CrMnTi, we include case depth measurement. All documents are in English.
Stop waiting for overseas suppliers to answer basic questions. Send us your collet drawing and get a firm quote in 12 hours. We reply with price, lead time, and a technical review of any potential manufacturing issues.
Email your PDF or STEP file to sc@bquq.com or message us on WhatsApp at +86 13713157787. We are in Dongguan, China, and we answer within one business day. Precision manufacturing is our only business. Your drawing is the starting point.
